Product Description

The John Deere Z530M 54-Inch Zero-Turn Riding Lawn Mower combines a 24-horsepower V-Twin gasoline engine, dual hydrostatic drive system, and wide 54-inch Accel Deep™ mower deck in a residential ZTrak™ platform designed for efficient mowing of larger lawns.

Power is supplied by a 24 hp / 17.9 kW V-Twin engine. The current Z530M uses a large 726 cc / 44.3 cu. in. displacement engine with an air-cooled design, cast-iron cylinder liners, full-pressure lubrication, and a replaceable oil filter. John Deere notes that published horsepower is supplied by the engine manufacturer for comparison purposes.

The 54-inch configuration uses John Deere’s Accel Deep™ mower deck, a deep, flat-top deck design developed to promote consistent airflow and clipping distribution. The deck supports side discharge as standard and is compatible with an optional MulchControl™ attachment for owners who want additional mowing configurations.

Cutting height can be adjusted from approximately 1 to 4 inches in 0.25-inch increments, while the foot-operated deck-lift system makes it easier to raise the deck when changing mowing height or moving between mowing and transport positions.

The Z530M uses dual hydrostatic transmissions, allowing each drive wheel to be controlled independently through the mower’s two steering levers. John Deere identifies the current drive system as the Tuff Torq® TZT7-U dual-hydro configuration, providing the maneuverability expected from a zero-turn platform.

A 4.5-gallon fuel tank provides extended operating capacity between refueling stops. Fuel level can be monitored through an electric fuel gauge as well as a physical fuel-level sight line.

Operator comfort is supported by a 20-inch cut-and-sewn seat with armrests and ComfortGlide™ suspension. John Deere also equips the Z530M with rubber floor mats, premium motion-control levers, and a foot-operated deck-lift system as standard equipment.

A folding Rollover Protective Structure (ROPS) is included on the current Z530M, adding a dedicated operator-protection structure while allowing the upper section to fold when necessary for storage or clearance.

The Z530M is part of John Deere’s residential Z500 Series, which is positioned above the smaller Z300 Series and is designed for larger residential mowing applications. John Deere currently lists Z500 Series models with mowing speeds of up to 9 mph depending on model and configuration.

Key Features

• John Deere Z500 Series ZTrak™ platform
• 24 hp / 17.9 kW V-Twin gasoline engine
• 726 cc engine displacement
• Air-cooled engine design
• Cast-iron cylinder liners
• Full-pressure lubrication
• Replaceable oil filter
• 54-in. Accel Deep™ mower deck
• Side-discharge cutting configuration
• Optional MulchControl™ compatibility
• 1–4 in. cutting-height range
• 0.25-in. cutting-height increments
• Foot-operated deck lift
• Dual hydrostatic transmission
• Tuff Torq® TZT7-U hydro drives
• Zero-turn steering
• 4.5-gallon fuel tank
• Electric fuel gauge
• Fuel-level sight line
• 20-in. cut-and-sewn seat
• ComfortGlide™ seat suspension
• Adjustable armrests
• Folding ROPS
• Rubber floor mats
• Premium control levers
• Front caster wheels
• Turf-style rear drive tires
• 4-year / 300-hour bumper-to-bumper warranty

These core features are confirmed by John Deere’s current Z530M product and Z500 Series pages.

Technical Specifications

Specification	John Deere Z530M 54 in.
Brand	John Deere
Series	Z500 Series ZTrak™
Model	Z530M
Product Type	Zero-Turn Riding Lawn Mower
Fuel Type	Gasoline
Engine Power	24 hp / 17.9 kW
Engine Configuration	V-Twin
Engine Displacement	726 cc / 44.3 cu. in.
Cooling	Air-Cooled
Lubrication	Full Pressure with Replaceable Filter
Deck Width	54 in. / 137 cm
Deck Type	Accel Deep™
Standard Discharge	Side Discharge
Mulching	Optional MulchControl™ Kit
Cutting Height	Approx. 1–4 in.
Height Increments	0.25 in.
Deck Lift	Foot Operated
Transmission	Dual Hydrostatic
Hydro Model	Tuff Torq® TZT7-U
Steering	Dual Lever Zero-Turn
Fuel Capacity	4.5 U.S. gal. / 17 L
Fuel Gauge	Electric Gauge + Sight Line
Front Caster Tires	13 × 6.5-6
Rear Drive Tires	22 × 9.5-10
Seat Back Height	20 in.
Seat Suspension	ComfortGlide™
Armrests	Yes
ROPS	Folding
Warranty	4 Years / 300 Hours

Current John Deere specification results confirm the tire sizes, 20-inch seat, 54-inch available cutting width, fuel capacity, and warranty.

Engine Configuration

24 HP V-Twin Gas Engine

Rated Engine Power: 24 hp / 17.9 kW
Configuration: V-Twin
Displacement: 726 cc / 44.3 cu. in.
Cooling: Air-Cooled
Lubrication: Full-Pressure
Oil Filter: Replaceable

The 726 cc V-Twin configuration is used on the current Z530M platform.

John Deere specifies that engine horsepower is provided by the engine manufacturer for comparison purposes and actual operating power may differ.

54-Inch Accel Deep™ Cutting Configuration

The exact mower in this listing uses the:

54-in. / 137-cm Accel Deep™ Mower Deck

John Deere’s Accel Deep design uses a deep, relatively flat deck shell to support airflow through the cutting chamber and consistent clipping discharge.

Cutting Width

54 inches

Cutting Height

Approx. 1–4 inches

Adjustment Increments

0.25 inch

Standard Configuration

Side Discharge

Optional Configuration

MulchControl™ Kit Compatible

The optional MulchControl equipment is not part of the standard base deck unless specifically included in the mower package.

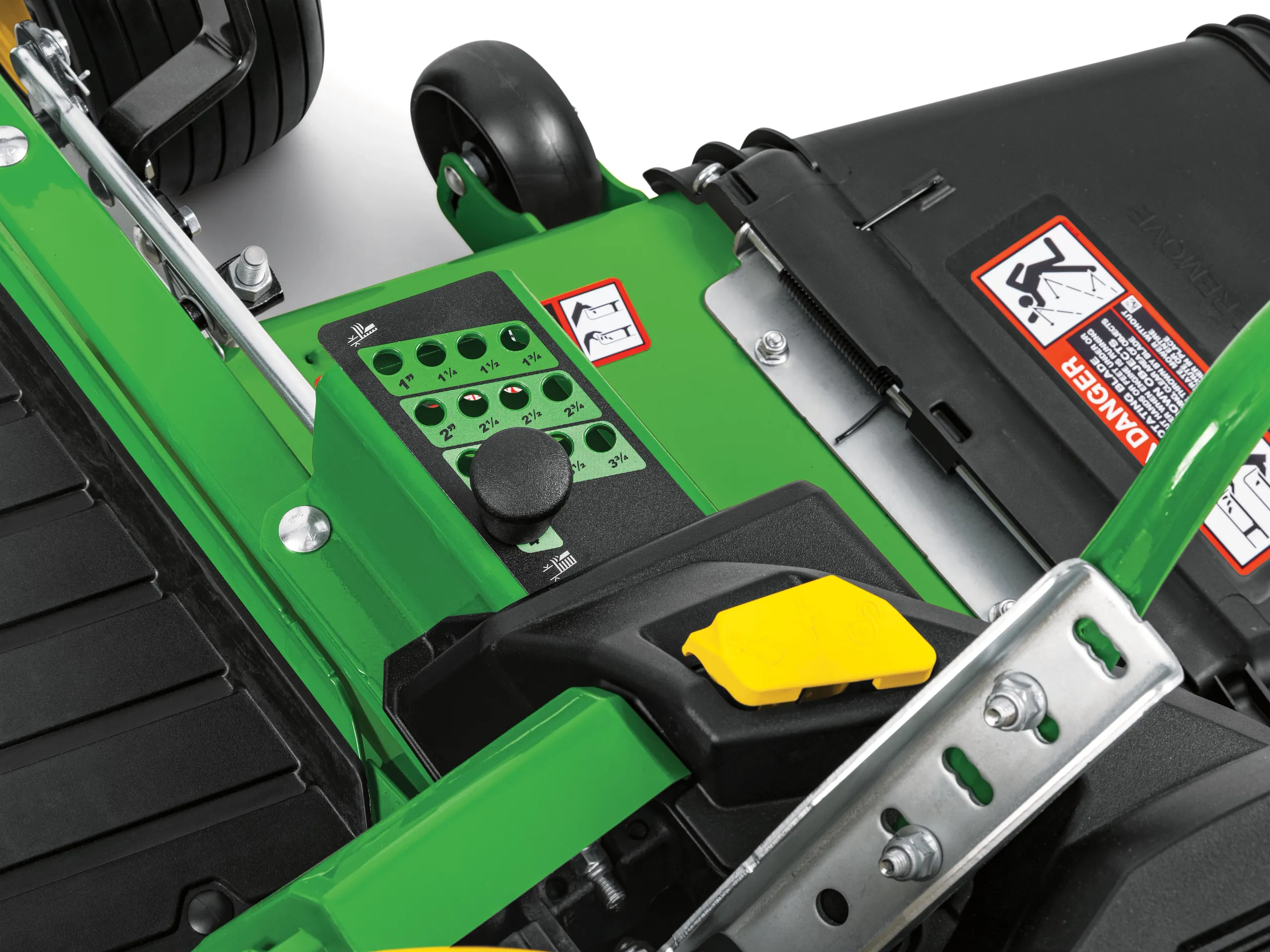

Deck-Lift Configuration

The Z530M incorporates a:

Foot-Operated Deck-Lift System

The system allows the operator to raise the mower deck and select the desired cutting-height position.

The deck also incorporates a transport position for moving the mower when active cutting is not required.

Transmission & Drive Configuration

Dual Hydrostatic Drive

The Z530M uses:

Dual Tuff Torq® TZT7-U Hydrostatic Transmissions.

The independent drive-wheel layout enables zero-turn steering through the mower’s two motion-control levers.

Steering

Dual Lever

Turning Configuration

Zero-Turn Radius

Transmission Type

Hydrostatic

This configuration does not use a conventional manual gear transmission.

Fuel System

Fuel Capacity

4.5 U.S. gallons / 17 liters

Fuel Type

Gasoline

Fuel Monitoring

• Electric fuel gauge
• Fuel-level sight line

These values are confirmed on John Deere’s current specification page.

Tire Configuration

Front Caster Tires

13 × 6.5-6

Rear Drive Tires

22 × 9.5-10

The wider rear turf tires serve as the hydrostatic drive wheels, while the front caster wheels provide the free-swiveling geometry required for zero-turn maneuvering.

Operator Comfort Configuration

The Z530M includes a:

20-in. Cut-and-Sewn Seat

with:

ComfortGlide™ Suspension

and:

Armrests

John Deere also lists:

• Rubber floor mats
• Premium control levers
• Foot-operated deck lift

as standard Z530M equipment.

Rollover Protective Structure

The current Z530M includes a:

Folding Rollover Protective Structure (ROPS).

The ROPS is part of the mower’s operator-protection system and should be used according to John Deere’s operator manual and safety instructions.

Mowing Capacity

John Deere positions the broader Z500 Series for residential mowing applications of up to approximately 6 acres, depending on mower configuration, terrain, mowing conditions, and operating pattern.

This should be treated as a series-level guideline rather than a guaranteed acreage-per-charge or acreage-per-hour figure.

What’s Included

Standard mower configuration includes:

• 1 × John Deere Z530M Zero-Turn Riding Lawn Mower
• 1 × 54-in. Accel Deep™ mower deck
• 24 hp V-Twin gasoline engine
• Dual hydrostatic transmission system
• Integrated 4.5-gallon fuel tank
• 20-in. ComfortGlide™ operator seat
• Folding ROPS
• Front caster wheels
• Rear turf drive tires
• Foot-operated deck-lift system
• Standard side-discharge hardware
• Factory-installed controls and safety systems

Optional Accessories – Not Included Unless Bundled

Depending on configuration and dealer availability, compatible equipment can include:

• MulchControl™ kit

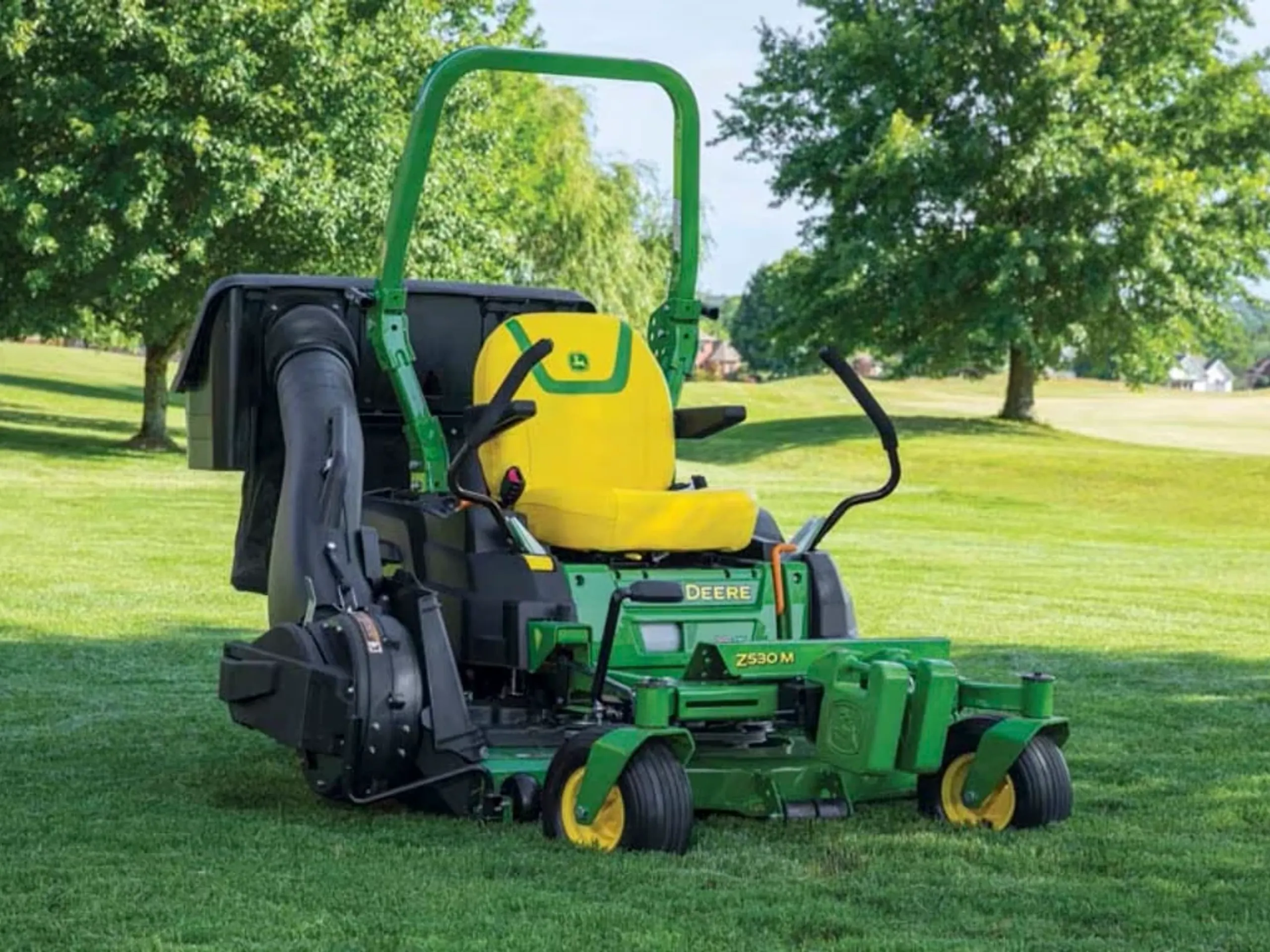

• Material collection system
• Rear hitch
• Weight/ballast kit
• Lawn-striping attachment
• Protective covers
• Other compatible John Deere Z500 accessories

The MulchControl kit is optional, not standard equipment on the 54-inch Z530M.

Warranty Information

John Deere 4-Year / 300-Hour Bumper-to-Bumper Limited Manufacturer Warranty, whichever occurs first, subject to John Deere warranty terms and exclusions.
