Product Description

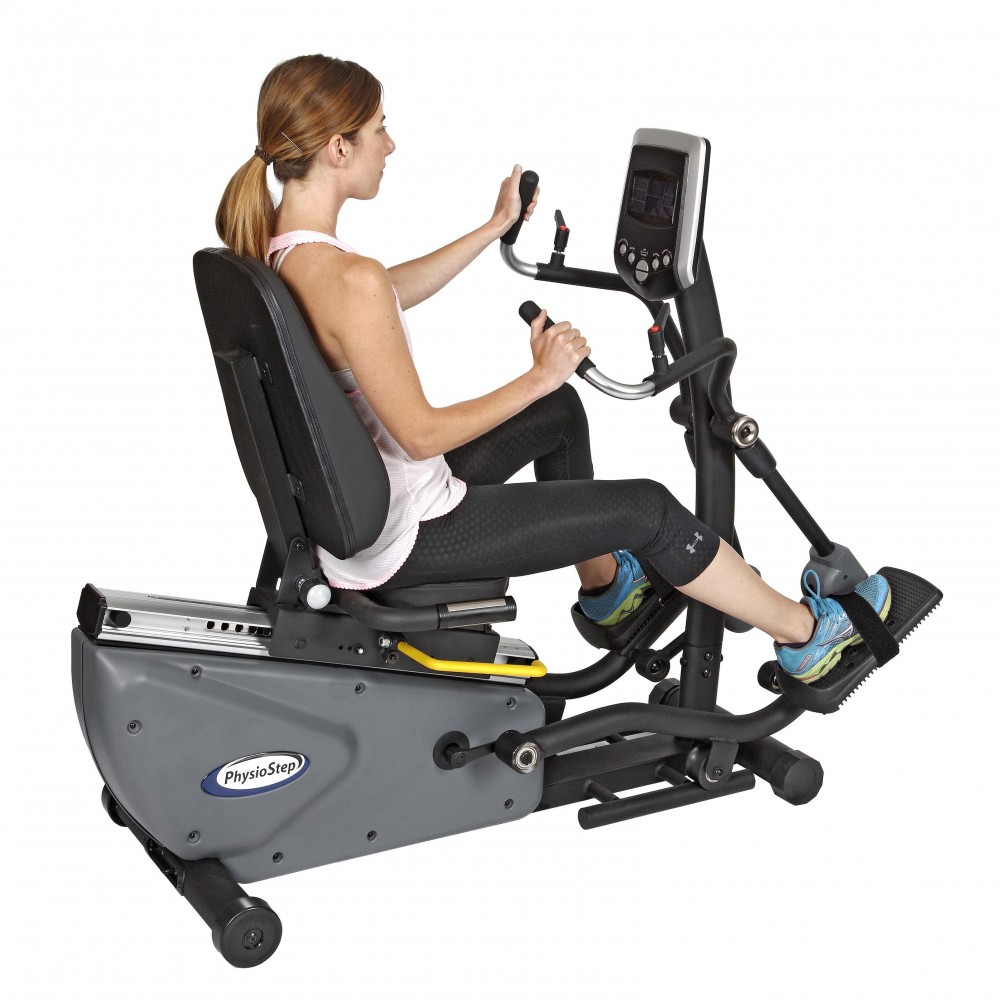

The HCI Fitness PhysioStep HXT Compact Recumbent Elliptical Cross Trainer is a compact seated total-body cardio machine designed around a smooth semi-elliptical stepping motion, adjustable upper-body handles, a supportive reclining seat and electronically controlled magnetic resistance.
This listing is specifically for the PhysioStep HXT, manufacturer SKU HXT, and should not be mixed with PhysioStep LXT, MDX, CardioStep or other HCI recumbent cross-trainer configurations.
The HXT uses an 8-inch semi-elliptical stride designed to keep leg extension relatively compact while creating a smooth continuous stepping pattern. The lower-body motion works together with connected upper-body arms, allowing the machine to provide coordinated arm-and-leg exercise from a stable recumbent position.

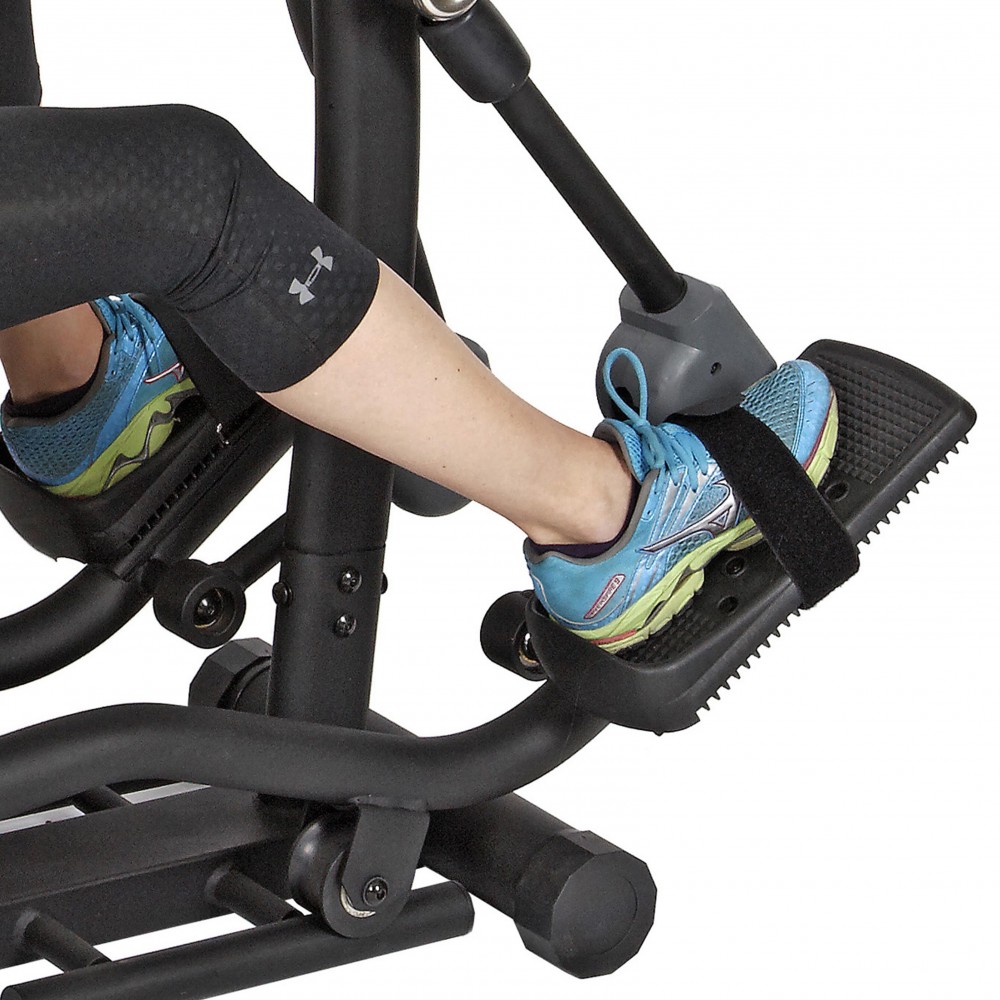

The pedals incorporate heel cups and ergonomic straps to help keep the user’s feet positioned during the stepping motion. Combined with the low-entry step-through frame, this creates a more accessible seated layout than many traditional standing elliptical machines.
Upper-body exercise is provided through HCI’s fully adjustable rotating handles. A quick-release mechanism allows the handle angle to be repositioned and locked according to the user’s preferred hand and arm position. The HXT also uses a relatively short arm movement compared with larger cross trainers.
Resistance is produced by a smooth magnetic resistance system with 16 electronically controlled levels. Lower settings allow light-effort sessions, while higher resistance settings provide progressively greater training load.
The machine’s backlit LCD console provides real-time workout feedback and direct access to 17 preset/programmed training modes plus QuickStart. The display tracks speed, time, distance, pulse, RPM, calories, watts and the selected resistance level.
The 17 programs include Manual, Rolling, Valley, Fat Burn, Ramp, Mountain, Intervals, Body Fat, Target Heart Rate, three heart-rate-control percentage programs, Watt Control and four custom programs. This provides both straightforward manual operation and more structured workout programming.

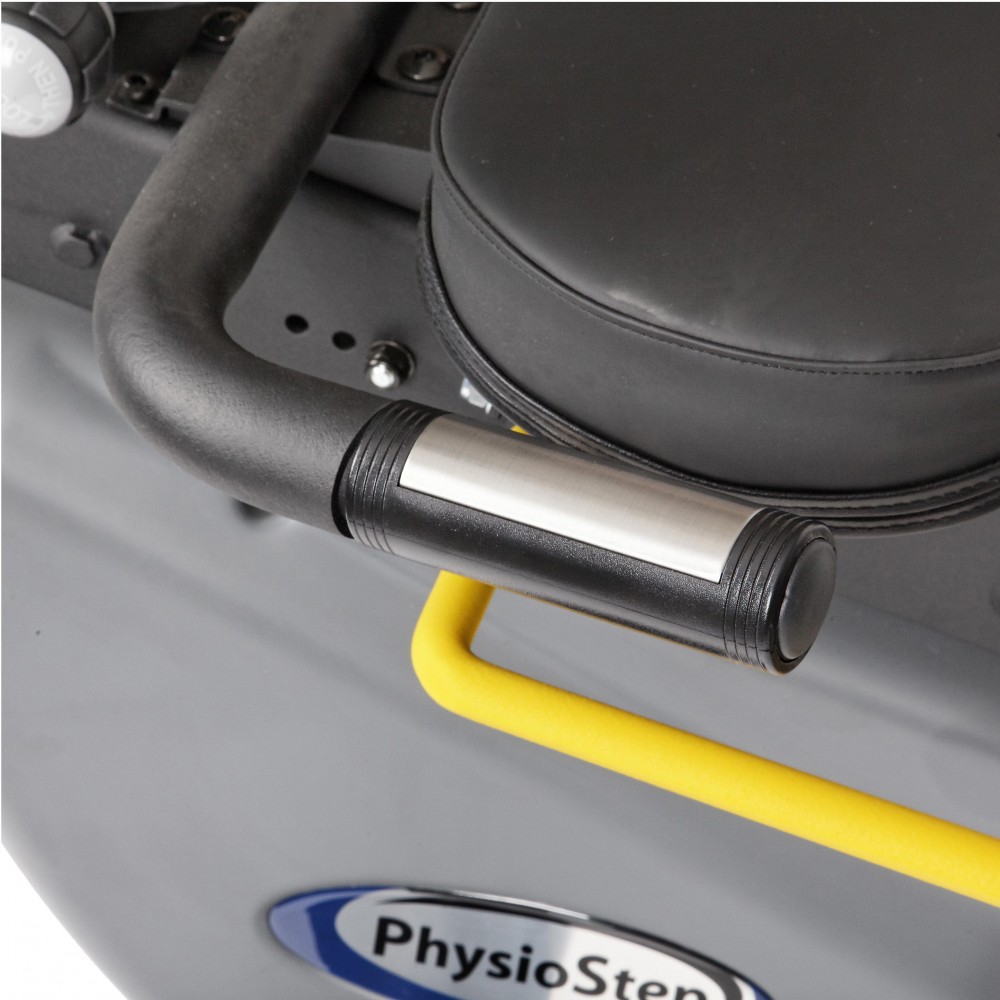

Heart-rate monitoring is built into the seat-side handles through contact pulse sensors. The console also includes heart-rate-oriented workout programs, allowing pulse information to be incorporated into supported training modes.
A major feature of the HXT is its 20-inch-wide padded seat. The seat position adjusts along the frame to accommodate different user heights, while the seat back offers three reclining positions for additional positioning flexibility. HCI specifies a user-height range of approximately 4’9″ to 6’2″.
The machine supports users weighing up to 330 lb and measures approximately 58 inches long × 23 inches wide × 49 inches high. At 165 lb, it is substantially more compact than many larger rehabilitation-oriented recumbent cross trainers in HCI’s lineup.
Power is supplied through an AC connection to a standard wall outlet. HCI also equips the HXT with an energy-saving function that automatically shuts the machine down after approximately five minutes of inactivity.
The HXT is designed for home and light-commercial use, rather than being restricted solely to a residential environment. HCI positions the machine as a compact total-body cardio platform suitable for a range of fitness and supported exercise environments.
Its combination of seated positioning, short semi-elliptical stride, adjustable handles, magnetic resistance, programmable console and relatively small footprint makes the PhysioStep HXT a versatile choice for users who want a compact recumbent cross trainer rather than a conventional upright elliptical.
Key Features
- Exact PhysioStep HXT / SKU HXT configuration
- Compact recumbent cross-trainer design
- Semi-elliptical total-body movement
- 8-inch stride length
- Connected upper- and lower-body motion
- Smooth magnetic resistance
- 16 electronically controlled resistance levels
- 17 workout programs
- QuickStart mode
- Large backlit LCD display
- Speed display
- Time display
- Distance display
- Pulse display
- RPM display
- Calories display
- Watts display
- Resistance-level display
- 20-inch-wide padded seat
- 3-position reclining seat back
- Adjustable seat position
- Step-through frame
- Low-entry seating position
- Fully adjustable rotating handles
- Quick-release handle adjustment
- Integrated contact heart-rate sensors
- Heel cups and ergonomic pedal straps
- 330-lb maximum user capacity
- User-height range of 4’9″–6’2″
- Automatic power-saving shutdown
- Home and light-commercial use
Technical Specifications
| Specification | PhysioStep HXT |
|---|---|
| Brand | HCI Fitness |
| Exact Model | PhysioStep HXT |
| Manufacturer SKU | HXT |
| Product Type | Recumbent Elliptical Cross Trainer |
| Motion | Semi-Elliptical |
| Stride Length | 8 in. |
| Total-Body Motion | Yes |
| Resistance System | Magnetic |
| Resistance Levels | 1–16 |
| Resistance Adjustment | Electronic |
| Programs | 17 + QuickStart |
| Seat Width | 20 in. |
| Seat Padding | Foam |
| Seat Back | Reclining |
| Reclining Positions | 3 |
| Seat Length Adjustment | Yes |
| Step-Through Design | Yes |
| Upper-Body Handles | Fully Adjustable / Rotating |
| Pedals | Heel Cups + Ergo Straps |
| Contact Heart Rate | Yes |
| Maximum User Weight | 330 lb |
| User Height Range | 4’9″–6’2″ |
| Length | 58 in. |
| Width | 23 in. |
| Height | 49 in. |
| Product Weight | 165 lb |
| Display Type | Backlit LCD |
| AC Powered | Yes |
| Automatic Power Save | Yes |
| Auto-Off | Approx. 5 Minutes Inactivity |
| Intended Environment | Home / Light Commercial |
All core measurements and operating specifications above are taken from HCI Fitness’s current HXT product page.
Resistance Configuration
Magnetic Resistance
The PhysioStep HXT uses a smooth magnetic resistance system.
Resistance Range: Levels 1–16
Resistance is electronically controlled through the console, providing a broad adjustment range for different workout intensities.
Elliptical Motion Configuration
Semi-Elliptical Stride
Stride Length: 8 in.
The compact 8-inch semi-elliptical path reduces the amount of forward leg extension required compared with many conventional standing elliptical machines.
The leg motion is mechanically connected with the upper-body arms for coordinated total-body exercise.
Pedal Configuration
The HXT pedals include:
- Heel cups
- Ergonomic straps
- Semi-elliptical connected motion
These components are standard to the exact HXT configuration.
Seat Configuration
20-Inch Seat
The seat uses:
Width: 20 in.
Padding: Foam
Position: Length adjustable
Reclining Backrest
The backrest provides 3 reclining positions.
User Fit
HCI specifies a user-height range of approximately:
4’9″ to 6’2″
Maximum supported user weight is:
330 lb
Upper-Body Handle Configuration
The HXT includes connected upper-body arms with fully adjustable rotating handles.
The handles can be positioned at different angles and secured using the quick-release adjustment mechanism.
This provides greater hand-position flexibility than fixed-grip cross-trainer arms.
Console Configuration
The backlit LCD displays:
- Speed
- Time
- Distance
- Pulse
- RPM
- Calories
- Watts
- Resistance Level
The console also provides direct access to QuickStart and programmed workouts.
Workout Programs
The HXT includes 17 programmed workout modes:
- Manual
- Rolling
- Valley
- Fat Burn
- Ramp
- Mountain
- Intervals
- Body Fat
- Target HR
- HRC 60%
- HRC 75%
- HRC 85%
- WATT Control
- Custom 1
- Custom 2
- Custom 3
- Custom 4
QuickStart is also available for immediate manual operation.
Heart-Rate Configuration
The HXT includes:
- Contact heart-rate sensors
- Pulse display
- Target heart-rate program
- 60% HRC program
- 75% HRC program
- 85% HRC program
The contact sensors are integrated into the seat-side handles.
Power Configuration
The PhysioStep HXT uses AC power and plugs into a standard compatible wall outlet.
Energy-Saving Function
The machine automatically powers down after approximately 5 minutes of inactivity.
Dimensions & Capacity
Length: 58 in.
Width: 23 in.
Height: 49 in.
Machine Weight: 165 lb
Maximum User Weight: 330 lb
User Height Range: 4’9″–6’2″
What’s Included
Standard PhysioStep HXT equipment includes:
- 1 × HCI Fitness PhysioStep HXT
- 20-inch padded seat
- 3-position reclining backrest
- Adjustable seat assembly
- Backlit LCD console
- Connected upper-body arm assembly
- Adjustable rotating hand grips
- 8-inch semi-elliptical pedal system
- Heel-cup pedals
- Ergonomic foot straps
- Integrated contact heart-rate handles
- Magnetic resistance system
- AC power components
- Standard assembly hardware
- Assembly tools
- Owner / User Manual
Warranty Information
HCI Fitness Manufacturer Limited Warranty: Lifetime Frame, 3-Year Parts and 1-Year Labor coverage, subject to manufacturer terms and qualifying use.
