Product Description

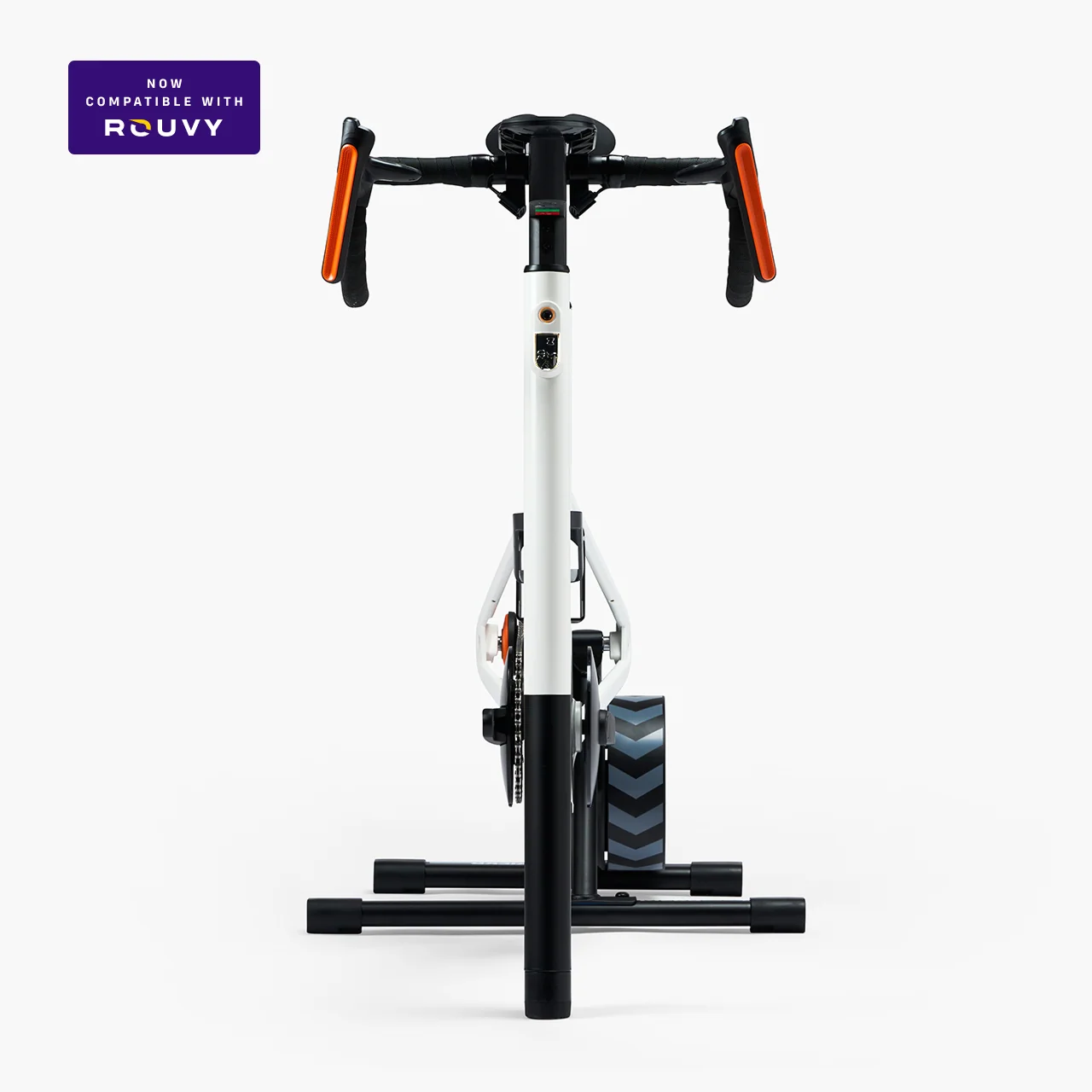

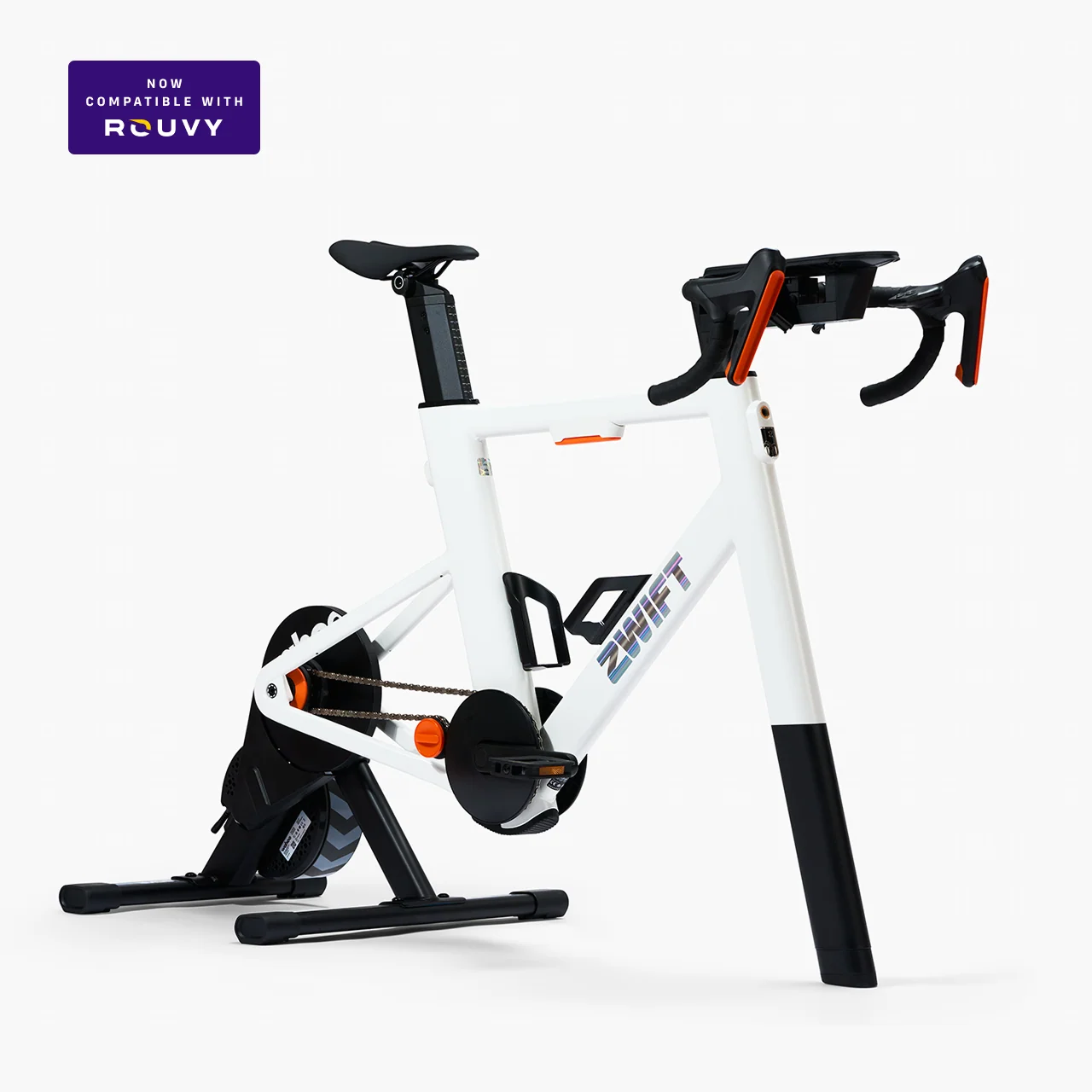

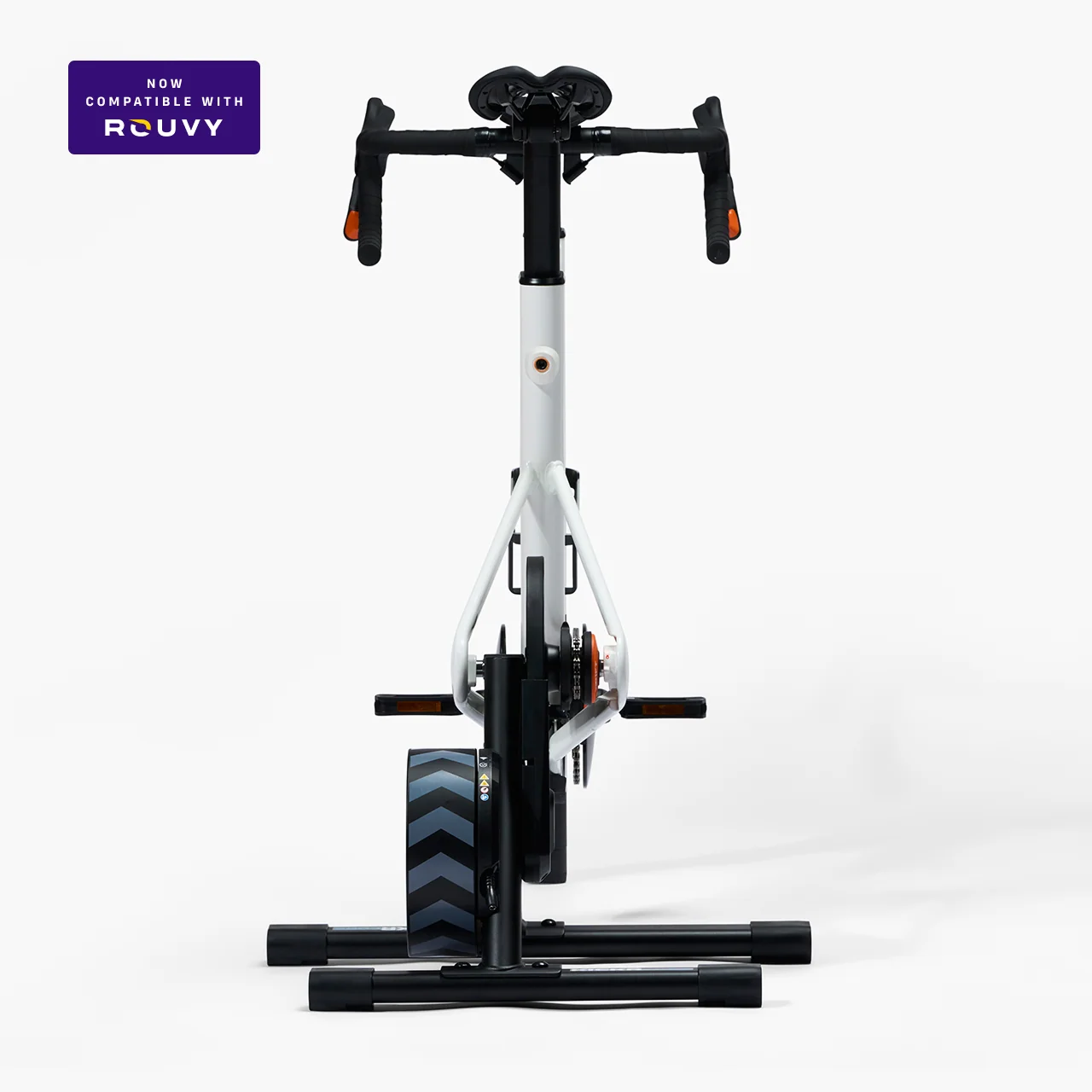

The Zwift Ride with KICKR CORE 2 is an all-in-one smart indoor cycling system combining the adjustable Zwift Ride Smart Frame with Wahoo’s second-generation KICKR CORE smart trainer.

Instead of mounting a conventional outdoor bicycle onto a trainer, the Zwift Ride provides a dedicated indoor frame that remains ready for training. Saddle and handlebar positioning can be adjusted for different riders, while integrated handlebar controllers provide direct access to virtual shifting and Zwift controls.

The current package uses the Wahoo KICKR CORE 2, replacing the original KICKR CORE used in earlier Zwift Ride packages. KICKR CORE 2 adds Wi-Fi connectivity, KICKR Bridge sensor integration, an updated LED status system, Race Mode and redesigned trainer legs while retaining the proven electromagnetic resistance platform.

The trainer provides a maximum output of 1,800 watts with manufacturer-rated ±2% power accuracy. It can automatically change resistance to reproduce virtual gradients up to 16%, allowing climbs in compatible cycling software to feel progressively harder as the road rises.

A major part of the system is virtual shifting. The KICKR CORE 2 arrives with the Zwift Cog V2 preinstalled, while the Zwift Ride’s integrated handlebar controls allow the rider to change virtual gears electronically.

Because resistance changes electronically, the physical chain remains on the same drivetrain position while simulated gearing changes inside the training software. This helps create fast, quiet gear changes without a conventional multi-speed derailleur drivetrain.

The handlebars also provide extensive control over Zwift. Riders can change gears, steer where supported, navigate menus, activate PowerUps, give Ride Ons and perform other supported in-game actions without repeatedly reaching for a phone, keyboard or computer.

KICKR CORE 2 uses electromagnetic resistance paired with a 5.4 kg flywheel to deliver a controlled direct-drive riding experience.

Connectivity has been expanded on KICKR CORE 2. The current trainer supports Wi-Fi, Bluetooth and ANT+, while multi-color indicator LEDs communicate power, connection and operating status. Speed, cadence, distance and power information can be transmitted wirelessly to compatible software.

KICKR CORE 2 also introduces KICKR Bridge, allowing supported heart-rate monitor data to pass through the trainer to a connected training application. This can simplify setups where available Bluetooth connections are limited.

For riders interested in racing or rapid changes of pace, KICKR Race Mode increases responsiveness to changes in rider output.

The Zwift Ride Smart Frame accommodates riders approximately 152 to 198 cm tall. Saddle height adjusts from approximately 60 to 87 cm, measured from the center of the bottom bracket to the top of the saddle.

The complete assembled Zwift Ride with KICKR CORE 2 measures approximately 136 cm long × 60.2 cm wide and weighs approximately 35.4 kg, making it more compact than many conventional outdoor-bike-and-trainer combinations.

Flat pedals are supplied as standard, but the crank arms accept conventional road and mountain-bike pedals for riders who prefer another pedal system.

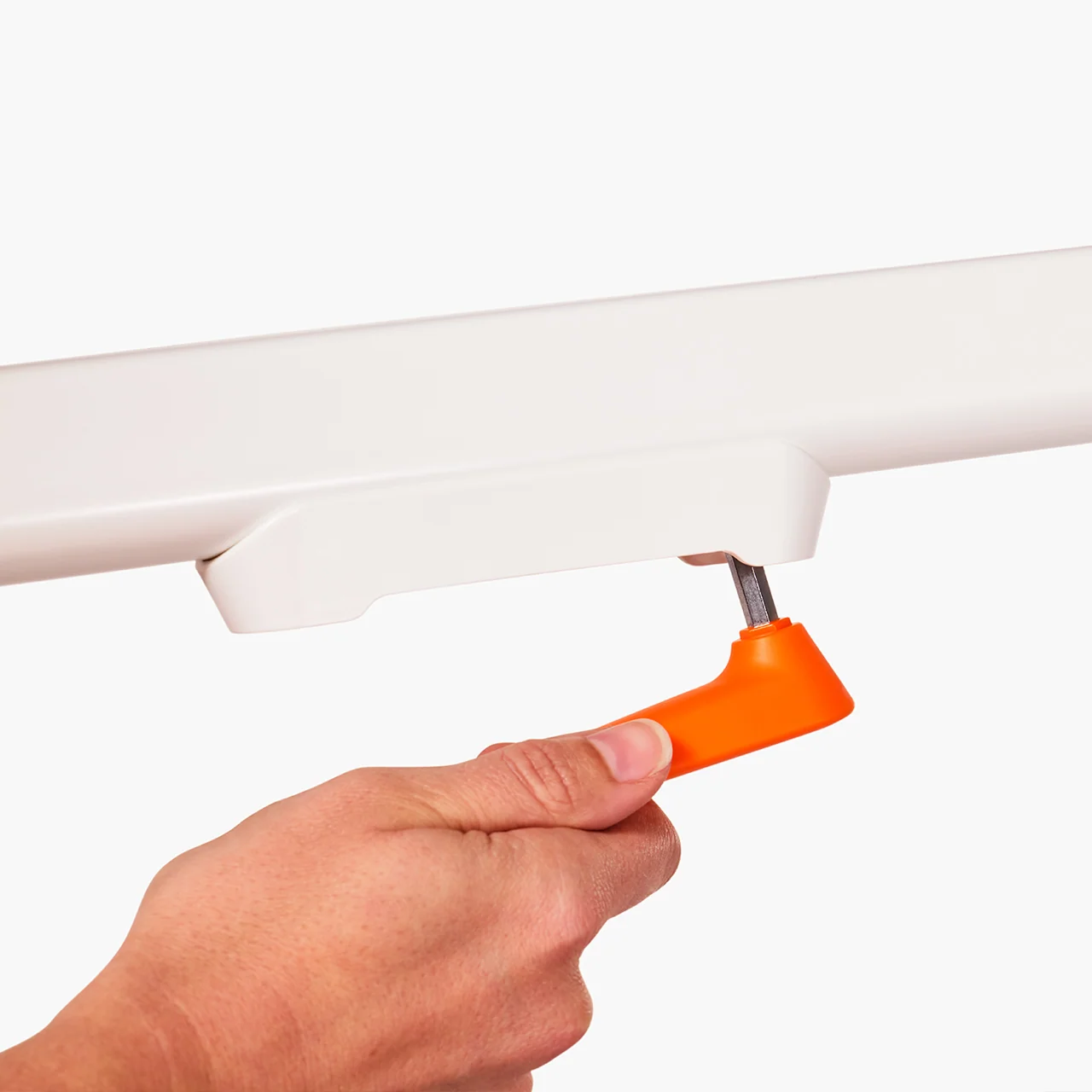

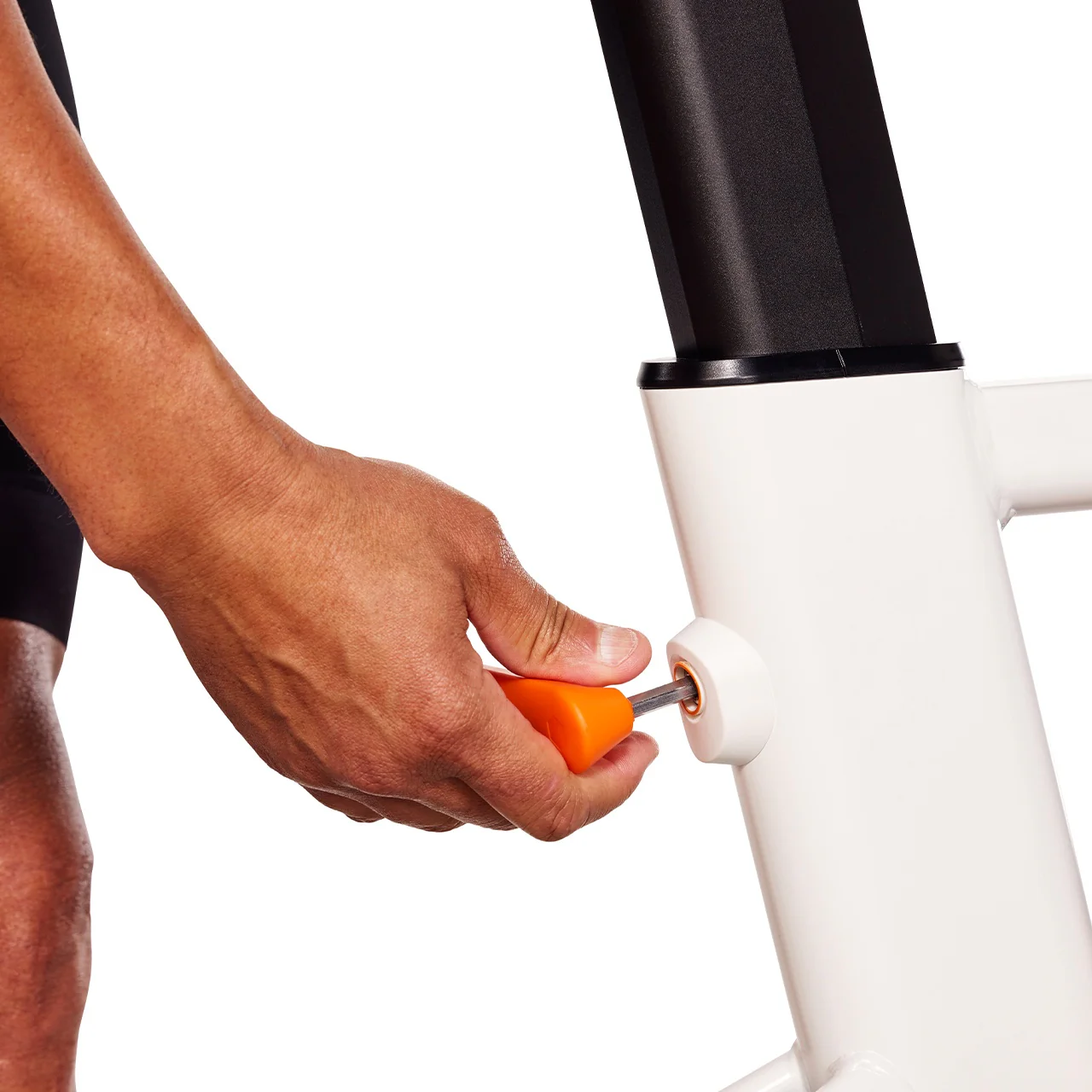

For multi-user households, a single included Zwift Key tool can be used to adjust the fit of the frame, and the tool stores directly on the bike when not in use.

Key Features

• Current Zwift Ride + KICKR CORE 2 configuration
• Wahoo KICKR CORE 2 direct-drive smart trainer
• Preinstalled Zwift Cog V2
• 1,800-watt maximum power output
• ±2% power accuracy
• Up to 16% simulated climbing gradient
• Electromagnetic resistance
• 5.4 kg flywheel
• Virtual gear shifting
• Integrated handlebar controllers
• In-game steering support
• Zwift menu/navigation controls
• PowerUp controls
• Wi-Fi connectivity
• Bluetooth connectivity
• ANT+ connectivity
• KICKR Bridge
• Race Mode
• Multi-color trainer status LEDs
• Adjustable saddle position
• Adjustable handlebar position
• Fits riders approximately 152–198 cm
• Flat pedals included
• Compatible with standard bicycle pedals
• Compact dedicated indoor frame
• No outdoor bicycle required

Technical Specifications

The performance figures above are published by Zwift and Wahoo for the current KICKR CORE 2-based package.

Resistance Configuration

Electromagnetic Smart Resistance

KICKR CORE 2 electronically controls resistance based on:

• Virtual terrain
• Selected workout target
• Training application instructions
• Virtual gearing
• Rider input

Maximum Power

1,800 Watts

Power Accuracy

±2%

Maximum Simulated Climb

16%

Virtual Shifting Configuration

Zwift Cog V2

The current package comes with:

Zwift Cog V2 – Preinstalled

The Cog provides the fixed physical drivetrain interface while virtual gears are controlled electronically.

This removes the need for conventional cassette shifting during normal Zwift Ride use.

Integrated Shifting

Virtual gear changes are controlled from the Zwift Ride handlebars.

Benefits include:

• Fast gear changes
• Quiet operation
• No conventional rear derailleur
• No physical cassette shifting during virtual shifts
• Customizable virtual gearing

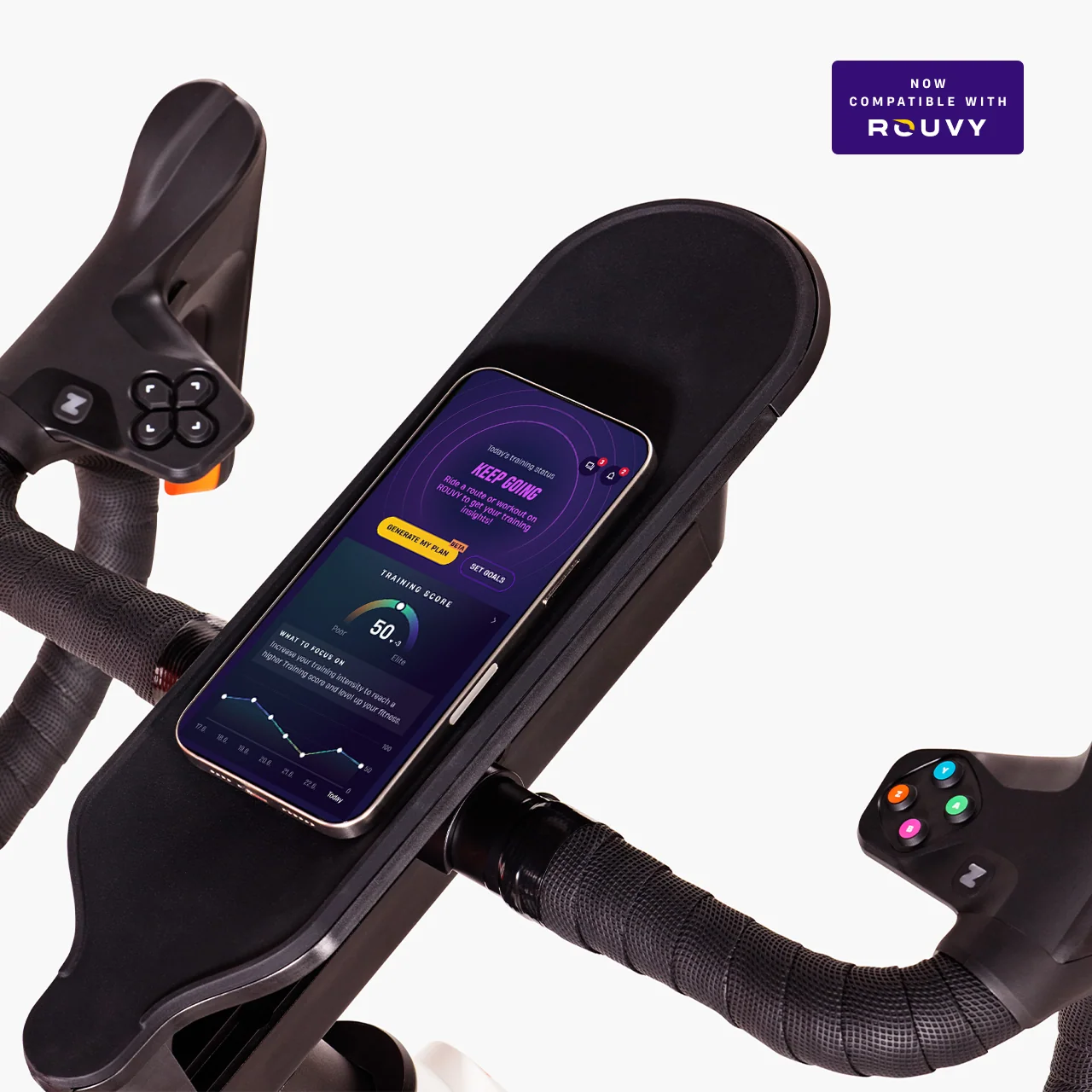

Handlebar Control Configuration

The Zwift Ride handlebars provide controls for:

• Virtual shifting
• Steering
• Zwift interface navigation
• PowerUps
• Ride Ons
• Workout and ride interactions

The controls communicate wirelessly through Bluetooth.

Controller Power Configuration

Controller Battery: Built-in rechargeable lithium-ion
Typical Runtime: Approximately 20 hours per charge
Charging Connector: USB-C
Charging Requirement: 5V / 1A

KICKR CORE 2 Connectivity

KICKR CORE 2 supports:

Wi-Fi

Provides improved connectivity and firmware functionality.

Bluetooth

Supports compatible phones, tablets, computers and sensors.

ANT+

Supports compatible fitness equipment and applications.

KICKR Bridge

Allows supported sensor information, including heart-rate data, to pass through KICKR CORE 2 to the connected training application.

Race Mode

Provides faster responsiveness to changes in rider effort.

Rider Fit Configuration

Rider Height

152–198 cm

Approximately:

5’0″–6’6″

Saddle Height

60–87 cm

Measured from the center of the bottom bracket to the top of the saddle.

Stepover Height

76.4 cm

Crank Length

170 mm

Handlebar Height

86.3–102.4 cm

Handlebar Width

42 cm center-to-center

Maximum Rider Weight

120 kg / approx. 264.6 lb

Frame Configuration

The dedicated Zwift Ride Smart Frame uses:

Drivetrain: Chain
Crank Length: 170 mm
Pedal Interface: Standard bicycle pedal compatible
Included Pedals: Flat pedals

The Smart Frame itself uses a KMC Z1 narrow 3/32″ chain.

Product Dimensions

Complete Zwift Ride + KICKR CORE 2

Length: 136 cm
Width: 60.2 cm
Weight: 35.4 kg

Zwift Ride Smart Frame Alone

Length: 110 cm
Width: 43.2 cm
Weight: 25.5 kg

KICKR CORE 2 Trainer Specifications

Trainer Dimensions:
23.5″ × 20.5″ × 18.5″
59.7 × 52 × 47 cm

Standard KICKR CORE 2 Weight:
43.5 lb / 19.7 kg

Resistance: Electromagnetic

Maximum Power: 1,800 W

Accuracy: ±2%

Maximum Simulated Grade: 16%

Power Input: 100–240V AC, 50–60 Hz

Note that the dedicated KICKR CORE 2 supplied with Zwift Ride has a bundle-specific configuration and parts package.

What’s Included

The current complete package includes:

• 1 × Zwift Ride Smart Frame
• 1 × Wahoo KICKR CORE 2 Smart Trainer
• Preinstalled Zwift Cog V2
• Zwift Ride handlebar assembly
• Integrated left and right handlebar controllers
• Saddle
• Seatpost assembly
• 170 mm crankset
• Chain drivetrain
• Left flat pedal
• Right flat pedal
• Zwift Key adjustment tool
• USB charging cable for controllers
• Magnetic cable tidies
• Trainer legs
• KICKR CORE 2 power adapter
• Trainer assembly bolts
• 6 mm hex tool
• Required bundle-specific trainer adapters
• Setup / product documentation

Zwift’s current product page specifically lists the Smart Frame and KICKR CORE 2 with Zwift Cog as the two main bundle components.

Not Included as Standard

Unless specifically included by the retailer:

• Display / television
• Tablet
• Smartphone
• Computer
• Apple TV
• Heart-rate monitor
• Cycling shoes
• Clipless pedals
• Floor mat
• KICKR HEADWIND fan
• KICKR CLIMB
• Long-term Zwift membership

Software Compatibility

Zwift currently lists the complete Zwift Ride with KICKR CORE 2 package as compatible with:

• Zwift
• Rouvy

The integrated Zwift Ride handlebar control experience is primarily designed around Zwift, so third-party-app functionality should not be described as identical to Zwift’s full in-game control experience.

Zwift Membership

Hardware ownership and Zwift software membership are separate.

A continuing Zwift subscription should not be described as permanently included unless your specific retailer package explicitly includes a membership period.

The physical equipment can therefore be sold separately from ongoing Zwift subscription charges.

Power Configuration

KICKR CORE 2

Input: 100–240V
Current: 1.5A
Frequency: 50–60 Hz

The trainer must be powered for electronically controlled smart resistance.

Handlebar Controllers

Rechargeable separately using:

USB-C, 5V / 1A

Ideal Applications

The Zwift Ride with KICKR CORE 2 is suited to:

• Indoor cycling
• Smart-bike training
• Virtual cycling
• Structured workouts
• Indoor racing
• Endurance sessions
• Interval workouts
• Climbing simulation
• Multi-user households
• Riders who do not want to repeatedly mount an outdoor bike to a trainer

Product Highlights

1,800W Maximum Power

Provides substantial resistance capability for high-output riding and sprint efforts.

±2% Power Accuracy

Provides consistent power measurement for structured indoor training.

16% Gradient Simulation

Virtual climbs automatically increase trainer resistance.

Virtual Shifting

Integrated handlebar controls provide electronic gear changes without conventional cassette shifting.

Wi-Fi Enabled KICKR CORE 2

The second-generation CORE adds Wi-Fi alongside Bluetooth and ANT+.

KICKR Bridge

Compatible sensor data can be routed through the trainer.

Race Mode

Improves responsiveness during rapid changes in power.

Fits Multiple Riders

Tool-adjustable frame accommodates riders approximately 152–198 cm tall.

Dedicated Indoor Design

No outdoor bicycle is required.

Warranty Information

For the complete current Zwift Ride with KICKR CORE 2 bundle, Zwift’s U.S. product page currently states:

2-Year Limited Warranty

Includes a 2-Year Limited Manufacturer Warranty, subject to Zwift/Wahoo warranty terms and qualifying residential use.
