Product Description

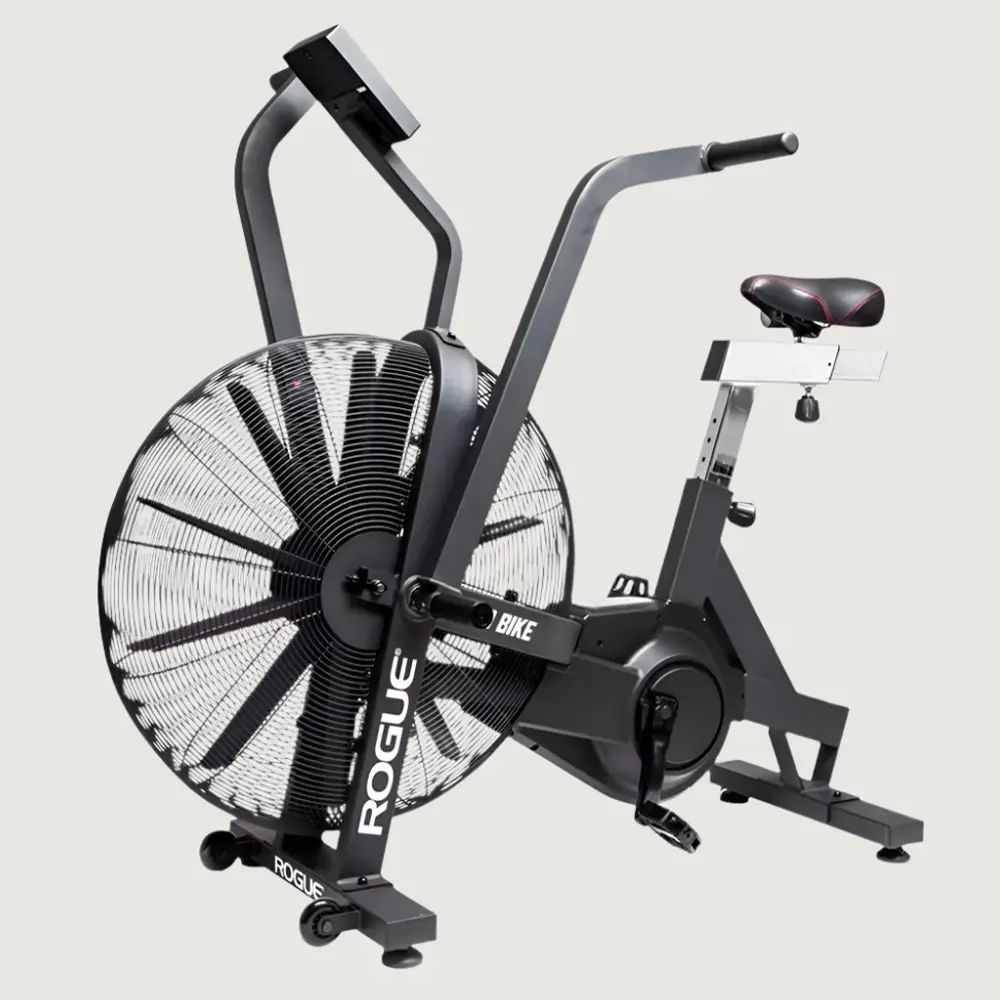

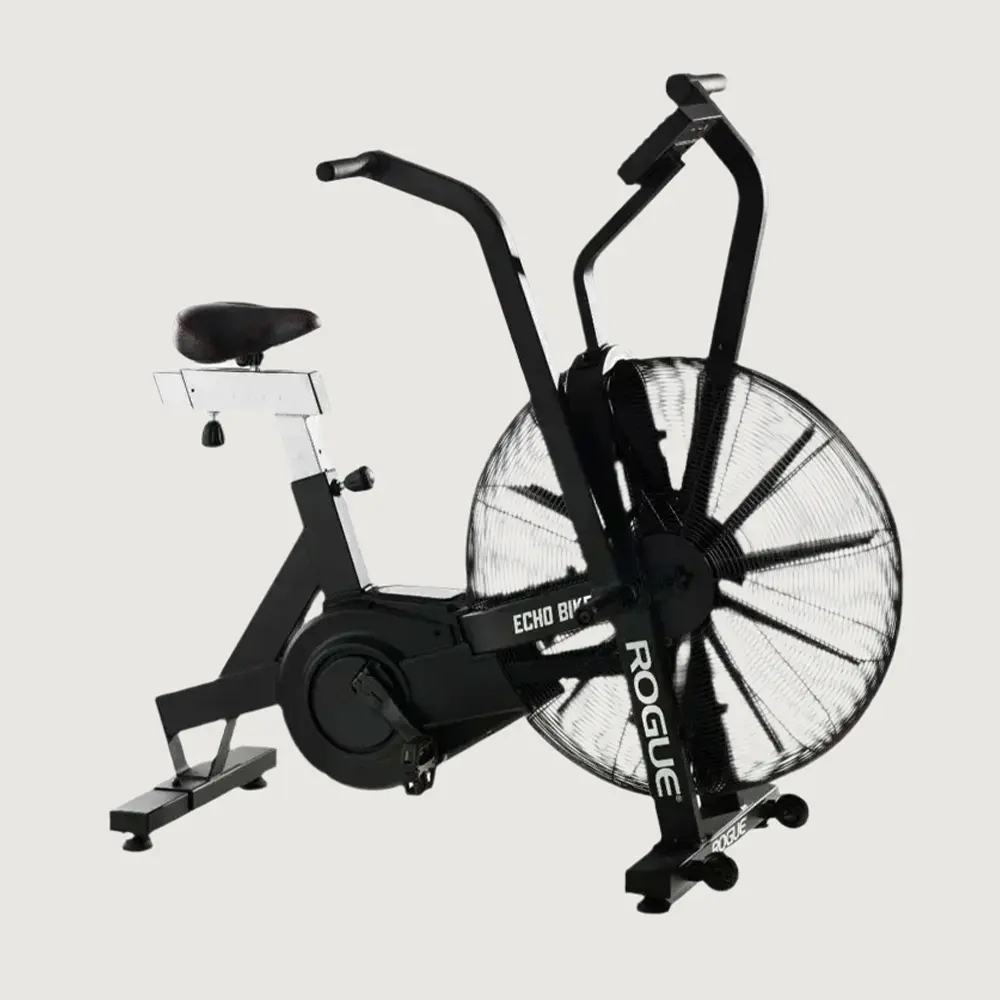

The Rogue Echo Bike V3.0 is a heavy-duty air-resistance exercise bike designed around simultaneous upper- and lower-body conditioning.

Unlike exercise bikes that use fixed magnetic resistance levels, the Echo Bike creates resistance through its large steel fan. As the rider pedals and moves the handles faster, greater airflow is generated and the resistance progressively increases.

This means there is no conventional numbered resistance dial. Workout intensity responds directly to rider effort, making the machine suitable for controlled steady sessions as well as short interval-based training.

The exact Version 3.0 uses a belt-driven steel fan system. Rogue describes the belt drive as providing a smooth and consistent riding experience while avoiding the drivetrain characteristics of traditional chain-driven fan bikes.

The bike’s frame is manufactured from several heavy steel tubing profiles and finished in a textured black powder coat. At 123 lb, the substantial frame mass is designed to keep the bike stable during higher-output sessions. Rubber leveling feet are fitted beneath the base tubes to improve floor contact and compensate for slightly uneven surfaces.

The V3.0 includes Rogue’s connected LCD console as standard. The console supports Bluetooth and ANT+, allowing compatible heart-rate equipment and supported cycling applications to communicate with the bike.

Workout information includes interval data, distance, calories, heart-rate information when a compatible transmitter is connected, and other session metrics.

Built-in workout modes include preset interval formats as well as customizable targets. Rogue specifically lists 20/10 intervals, 10/20 intervals, custom work/rest intervals, and targets for time, distance, or calories.

The standard V3.0 console operates from four AA batteries, which Rogue includes with the bike. An external electrical outlet is therefore not required for normal operation of the standard console.

For rider positioning, the seat provides extensive adjustment. Rogue’s current specification lists 11 vertical height positions and five front-to-back settings. This allows the saddle position to be adapted to different users without replacing components.

Large 1.5-inch-diameter rubber grip handles are welded directly to the arm assemblies for rigidity. During operation, the handles move with the drivetrain, allowing the arms and legs to contribute simultaneously.

The V3.0 also includes a steel step plate, rotating foot pegs and metal pedals. The stationary foot pegs allow a user to rest the legs while continuing supported upper-body movement.

Despite its 123-lb weight, the machine remains movable. Rogue fits 1-inch polyurethane transport wheels to the front of the frame so the assembled bike can be tilted and rolled to another position.

The complete machine measures approximately 55 inches long × 29.5 inches wide × 52.25 inches high, while the main floor footprint is approximately 44.5 × 23.75 inches. Rogue rates the Echo Bike V3.0 for a maximum user weight of 330 lb.

Key Features

• Exact Rogue Echo Bike V3.0
• Progressive air resistance
• Belt-driven drivetrain
• Precision steel fan blade
• Heavy-duty steel construction
• 123-lb machine weight
• 330-lb maximum user capacity
• Bluetooth-enabled LCD console
• ANT+ compatibility
• Interval workout modes
• 20/10 interval program
• 10/20 interval program
• Custom work/rest intervals
• Target time mode
• Target distance mode
• Target calories mode
• Heart-rate tracking with compatible transmitter
• 11 seat-height positions
• 5 fore/aft seat positions
• 1.5″ rubber-grip handles
• Metal pedals
• Rotating foot pegs
• Steel step plate
• Rubber leveling feet
• Front polyurethane transport wheels
• Textured black powder-coat finish
• No wall outlet required for standard console

Technical Specifications

Specification	Rogue Echo Bike V3.0
Brand	Rogue Fitness
Exact Model	Echo Bike V3.0
Product Type	Air Resistance Exercise Bike
Resistance Type	Progressive Air
Drive	Belt Driven
Fan	Steel
Product Weight	123 lb
Maximum User Weight	330 lb
Length	55 in.
Width	29.5 in.
Height	52.25 in.
Footprint	44.5″ × 23.75″
Console	LCD
Console Housing Size	Approx. 5″ W × 8″ H
Bluetooth	Yes
ANT+	Yes
Console Power	4 × AA Batteries
Seat Height Positions	11
Seat Fore/Aft Positions	5
Handle Diameter	1.5 in.
Pedals	Metal
Leveling Feet	Rubber
Transport Wheels	Yes
Finish	Textured Black Powder Coat
Warranty	2 Years

Current Rogue specifications confirm these core V3.0 dimensions, capacity and equipment details.

Resistance Configuration

Progressive Air Resistance

The Echo Bike does not use preset mechanical resistance levels.

Resistance increases according to the speed applied to the fan:

More effort → more fan speed → greater resistance

This allows resistance to scale naturally with the rider’s output.

The same system also allows intensity to reduce automatically when cadence and handle speed decrease.

Drive Configuration

Belt-Driven Steel Fan

The exact V3.0 uses a:

Belt-Driven Precision Steel Fan Blade

Rogue specifically identifies the fan as belt driven rather than chain driven.

This is an important product-page distinction when comparing the Echo Bike with other air bikes that use chain or multi-stage drivetrains.

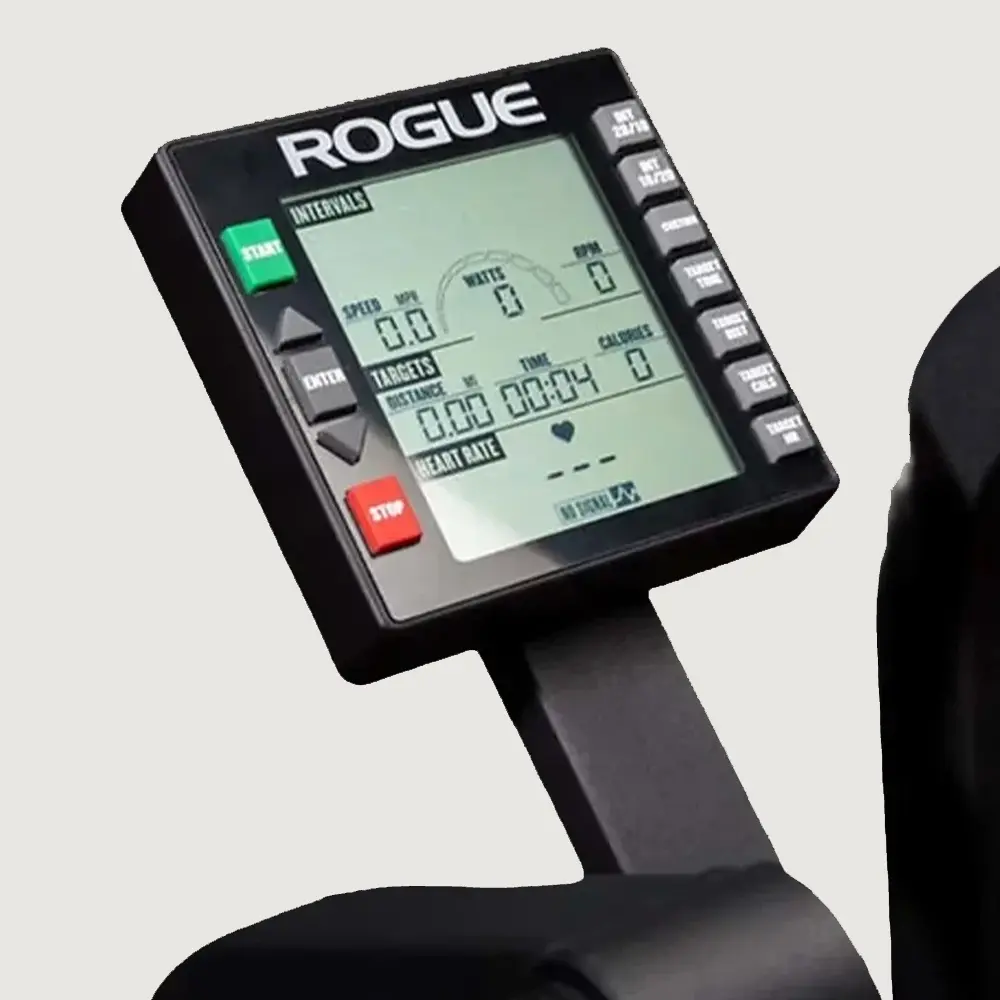

Console Configuration

The standard V3.0 includes Rogue’s connected LCD console.

Console Size

Approximate housing dimensions:

5″ wide × 8″ tall

Connectivity

• Bluetooth
• ANT+

Standard Workout Modes

• 20 sec work / 10 sec rest
• 10 sec work / 20 sec rest
• Custom work/rest intervals
• Target Time
• Target Distance
• Target Calories

Heart Rate

Heart-rate data can be displayed when paired with a compatible transmitter.

Heart-rate transmitter is not included as standard.

Console Power Configuration

The standard V3.0 console uses:

4 × AA batteries

Rogue currently includes the required batteries.

Standard Bike Power

AC Outlet Required: No
Power Cord Required: No

The mechanical fan resistance operates from the rider’s motion.

Seat Configuration

Rogue’s current gear specification lists:

Height Positions: 11
Fore/Aft Positions: 5

Manufacturer Page Inconsistency

One lower section of Rogue’s current page also describes the padded seat as locking into 8 height positions, while the formal Gear Specs section states 11 height positions.

For structured ecommerce specifications, use:

11 height positions / 5 fore-aft settings

because this is Rogue’s formal current Gear Specs value.

Handle Configuration

Handle Diameter: 1.5 in.

The large rubber grips are attached directly to the moving arm assemblies.

The moving handles allow simultaneous pushing and pulling movement while pedaling.

Pedal & Foot-Peg Configuration

The V3.0 includes:

• Metal pedals
• Rotating foot pegs
• Steel step plate

Rogue lists the rotating foot pegs at approximately 4.5 inches long.

Frame Configuration

The Echo Bike uses multiple steel-tube sections, including:

• 2″ × 3″
• 1.25″ × 3″
• 1.625″ × 3.125″

The frame receives a textured black powder-coat finish.

Rubber leveling feet beneath the frame help stabilize the bike on the floor.

Dimensions & Capacity

Overall Length: 55 in.
Overall Width: 29.5 in.
Overall Height: 52.25 in.
Main Footprint: 44.5″ × 23.75″
Product Weight: 123 lb
Maximum User Weight: 330 lb

The 55-inch length is measured with the seat positioned furthest from the fan cage, while the 29.5-inch width is measured at the handles, the bike’s widest point.

Transport Configuration

Despite its heavy steel frame, the V3.0 can be repositioned using its front transport wheels.

Rogue equips the bike with approximately:

1-inch-wide polyurethane front wheels

This allows the frame to be tilted and rolled rather than lifted completely.

What’s Included

Standard Rogue Echo Bike V3.0 equipment includes:

• 1 × Rogue Echo Bike V3.0
• Belt-driven steel fan assembly
• Standard connected LCD console
• Adjustable padded seat
• Moving handle assemblies
• 1.5″ rubber handle grips
• Metal pedals
• Rotating foot pegs
• Steel step plate
• Front transport wheels
• Rubber leveling feet
• 4 × AA console batteries
• Standard assembly hardware
• Required assembly tools
• Assembly / user documentation

Rogue confirms that hardware and assembly tools are included standard.

Important M2 Monitor Note

The newer Rogue M2 Monitor is not standard on the base Echo Bike V3.0.

It is currently an optional upgrade.

The M2 upgrade adds features including:

• 4.7″ backlit LCD
• Built-in workout programming
• Rogue App connectivity
• Workout history
• Integrated device holder
• OTA firmware updates

Do not transfer these M2-specific capabilities into the base V3.0 standard-console specifications.

Wind Guard Configuration

A wind guard is not included as standard with the base Echo Bike V3.0.

Rogue currently offers V3-specific wind guards separately.

V3 guards should also not be confused with the older V2 wind guard, which uses a different compatibility configuration.

Ideal Applications

The Rogue Echo Bike V3.0 is designed for:

• Indoor conditioning
• Full-body cardio
• Interval workouts
• Steady cycling sessions
• Target-distance workouts
• Target-calorie workouts
• Home gyms
• Training facilities
• Multi-user gym environments

Product Highlights

Progressive Fan Resistance

Resistance responds directly to rider effort without a preset resistance ceiling.

Belt Drive

The fan is driven through a belt system for a smooth and consistent response.

Heavy 123-lb Steel Frame

Provides a substantial foundation during higher-output workouts.

Connected Console

Bluetooth and ANT+ allow compatible external devices to connect.

Adjustable Rider Position

11 vertical seat settings and five fore/aft positions provide multi-user adjustment.

330-lb Capacity

The current manufacturer rating supports users up to 330 lb.

No Electrical Outlet Required

The standard console operates on included AA batteries.

Warranty Information

Rogue currently provides:

2-Year Manufacturer Limited Warranty

for the Echo Bike.

Rogue states that the bike is covered against defects in materials and workmanship for two years from purchase when used under normal conditions and according to the user guide.

Rogue Fitness 2-Year Limited Manufacturer Warranty, subject to Rogue warranty terms and qualifying use.
