Product Description

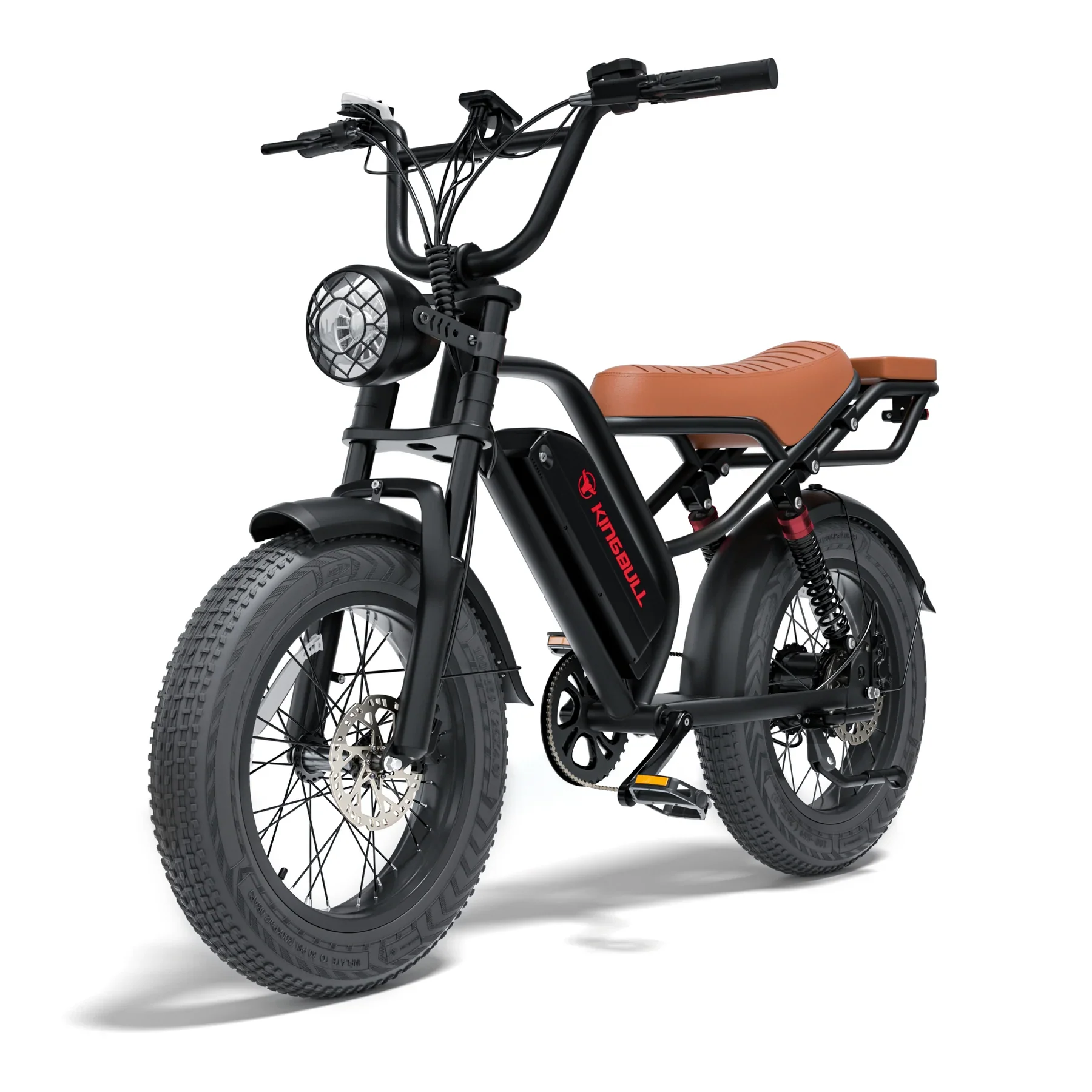

The Kingbull Ranger Vintage Electric Moped Bike combines retro motorcycle-inspired styling with a modern fat-tire electric drivetrain, full suspension and a large-capacity removable battery.

This exact listing is for the:

Black / Ebike Only

configuration.

It should not be mixed with the separate +$259 Power Station Upgrade variant.

At the center of the Ranger is a 750W brushless hub motor capable of 1300W peak output and 85 Nm of torque. Kingbull designed the power system for urban roads, recreational routes and uneven surfaces while maintaining the distinctive low-slung moped-style frame.

Energy is supplied by a 48V 18Ah lithium-ion battery with 864Wh capacity. The battery is removable and Kingbull publishes a maximum range of up to 80 miles under ideal riding conditions.

Actual range varies according to terrain, assistance setting, speed, rider/cargo load, temperature, tire pressure and riding conditions.

The Ranger reaches a manufacturer-rated maximum speed of 28 MPH and is listed as Class 3 by default, with a Class 2 configuration available where appropriate. Local electric-bike regulations differ, so the applicable classification and permitted operating speed depend on location.

Electric assistance is managed through five pedal-assist levels, a cadence sensor and a twist throttle.

The cadence-based system detects pedaling movement and applies assistance according to the selected PAS level. Brake sensors work with the power cut-off brake levers so motor drive is interrupted during braking.

A Shimano 7-speed mechanical drivetrain provides conventional gear selection independent of the electric assistance system. Kingbull specifies the Shimano SL-TX50-7R right-side shifter for the Ranger.

The Ranger uses a full-suspension layout.

At the front is a dual-crown hydraulic-spring suspension fork with 80mm travel and lockout, while the rear uses dual shock absorbers. This arrangement is designed to reduce impacts transmitted through the frame when riding across uneven surfaces.

The bike rolls on wide 20″ × 4.0″ fat tires, providing a broad tire footprint. Kingbull recommends approximately 25–28 PSI for everyday riding.

The frame is built from high-carbon steel and uses internal cable routing. The moped-style saddle is fixed rather than height adjustable and sits approximately 33.5 inches from the ground.

A key characteristic of the Ranger is its long 21.7-inch-wide vintage-style saddle, finished in brown PU leather for a classic motorcycle-inspired appearance.

Lighting equipment includes a 48V LED headlight, rear light with brake-light functionality and integrated left/right turn indicators. A dual-tone horn is also fitted.

A full-color multifunction display provides ride information and controls for the electrical system.

The Ranger weighs approximately 88 lb and carries a published 350-lb maximum payload rating. Kingbull also lists a 150-lb rear rack load limit for the frame’s rear support structure.

Key Features

• Exact Black / Ebike Only variant
• Manufacturer SKU KRG-BLACK
• 750W continuous motor
• 1300W peak motor output
• 85 Nm torque
• 48V electrical system
• 18Ah removable battery
• 864Wh battery capacity
• Up to 80-mile manufacturer-rated range
• Up to 28 MPH
• Class 3 default configuration
• Class 2 configuration supported
• 5 pedal-assist levels
• Twist throttle
• Cadence sensor
• Brake sensor
• Hydraulic brakes
• Motor cut-off brake levers
• Full suspension
• 80mm dual-crown front fork
• Rear dual shock absorbers
• Shimano 7-speed drivetrain
• 20″ × 4.0″ fat tires
• Vintage PU leather saddle
• Integrated LED lighting
• Brake light
• Turn signals
• Dual-tone horn
• Full-color multifunction display
• 350-lb maximum payload
• 150-lb rear-rack load rating
• IPX6 water-resistance rating
• Adjustable kickstand
• Front and rear fenders
• Aluminum-alloy pedals

Technical Specifications

Specification	Kingbull Ranger
Brand	Kingbull
Model	Ranger
Variant	Black / Ebike Only
Manufacturer SKU	KRG-BLACK
Barcode	754137956791
Product Type	Moped-Style Fat-Tire Ebike
Frame	High-Carbon Steel
Motor Type	Brushless Hub Motor
Continuous Motor Power	750W
Peak Motor Power	1300W
Motor Torque	85 Nm
Controller	48V / 22A
Battery	Lithium-Ion
Battery Voltage	48V
Battery Capacity	18Ah
Battery Energy	864Wh
Maximum Range	Up to 80 Miles
Maximum Speed	28 MPH
Default Class	Class 3
Alternate Configuration	Class 2
Pedal Assist	5 Levels
Sensor	Cadence + Brake Sensor
Throttle	Twist Throttle
Walk Mode	3 MPH
Drivetrain	Shimano 7-Speed
Shifter	Shimano SL-TX50-7R
Front Suspension	Dual-Crown Hydraulic Spring
Front Suspension Travel	80mm
Fork Lockout	Yes
Rear Suspension	Dual Shock Absorbers
Tires	20″ × 4.0″
Inner Tubes	20″ × 4.0″, Schrader
Recommended Tire Pressure	25–28 PSI
Brakes	Hydraulic
Brake Motor Cut-Off	Yes
Display	Full-Color Multifunction Display
Headlight	48V LED
Tail Light	Integrated
Brake Light	Yes
Turn Signals	Left & Right
Horn	Left-Mounted Dual-Tone Horn
Seat	Fixed Moped-Style
Seat Height	33.5 in.
Bike Weight	88 lb
Maximum Payload	350 lb
Rear Rack Load Limit	150 lb
Rider Height Range	5’0″–6’3″
Water Resistance	IPX6
Charger	U.S. Standard 2.0A Smart Charger
Pedals	Aluminum Alloy
Kickstand	Adjustable Aluminum Alloy
Fenders	Front & Rear
Warranty	2 Years

Motor Configuration

750W Continuous / 1300W Peak

The Ranger uses a:

750W brushless hub motor

with:

1300W peak output

and:

85 Nm of manufacturer-rated torque

This distinction is important for ecommerce accuracy.

Correct Listing Format

Rated Motor Power: 750W
Peak Motor Power: 1300W

Do not describe the Ranger as having a continuously rated 1300W motor.

Battery Configuration

48V 18Ah / 864Wh

Voltage: 48V
Capacity: 18Ah
Energy: 864Wh
Type: Lithium-Ion
Configuration: Removable

Kingbull publishes a maximum assisted range of:

Up to 80 miles under ideal conditions.

Range Configuration

Up to 80 Miles

The published figure is a best-case manufacturer rating rather than a guaranteed real-world result.

Range can vary based on:

• Pedal-assist setting
• Throttle use
• Riding speed
• Rider weight
• Cargo
• Hills
• Road/trail surface
• Wind
• Temperature
• Tire pressure
• Riding style

For GMC-safe copy, use:

“Up to 80 miles under ideal riding conditions.”

rather than simply stating “80-mile guaranteed range.”

Speed & Class Configuration

Maximum Manufacturer-Rated Speed: 28 MPH

Default Classification: Class 3

Alternate Configuration: Class 2

Electric-bike laws and class definitions vary by jurisdiction, so buyers should follow the rules applicable where the bike is operated.

Pedal Assist Configuration

The Ranger provides:

5 Pedal-Assist Levels

It uses a:

Cadence Sensor

plus:

Brake Sensor

The cadence system detects pedal rotation and applies electric assistance according to the selected level.

Throttle Configuration

Twist Throttle

The Ranger uses a motorcycle-style:

Twist Throttle

mounted at the handlebar.

This is the correct throttle type for the current Ranger.

Drivetrain Configuration

Shimano 7-Speed

Shifter: Shimano SL-TX50-7R
Speeds: 7

The mechanical gearing operates separately from the electric pedal-assist level.

Suspension Configuration

Front

Type: Dual-Crown Suspension Fork
Mechanism: Hydraulic Spring
Travel: 80mm
Lockout: Yes
Steerer: Tapered

Rear

Dual Shock Absorbers

The front and rear suspension combine to create the Ranger’s full-suspension chassis.

Wheel & Tire Configuration

Tire Size: 20″ × 4.0″

Tube: 20″ × 4.0″ with Schrader valve

Recommended Everyday Tire Pressure

25–28 PSI

Kingbull notes that the tire sidewall may show a 30 PSI maximum, while its everyday recommendation is 25–28 PSI.

Brake Configuration

The Ranger uses:

Hydraulic Brakes

with:

Left and Right Motor Power Cut-Off Brake Levers

This allows the electrical drive system to stop applying motor power when braking is detected.

Frame Configuration

High-Carbon Steel

The Ranger uses a:

20-inch high-carbon-steel frame

with:

• Internal wiring
• Integrated rear structure
• Front fender
• Rear fender
• Full-suspension mounting points

Seat Configuration

The Ranger features a long moped-style saddle.

Seat Height: 33.5 in. / 85 cm
Seat Width: 21.7 in. / 55 cm
Material/Finish: Vintage-style brown PU leather
Adjustment: Fixed / Non-Adjustable

The fixed saddle height is an important fit consideration and should not be described as vertically adjustable.

Size & Fit

Overall Measurements

Total Length: 68.1 in. / 173 cm
Total Height: 44.1 in. / 112 cm
Seat Height: 33.5 in. / 85 cm
Seat Width: 21.7 in. / 55 cm
Rear Rack Width: 10.2 in. / 26 cm
Handlebar Width: 29.1 in. / 74 cm

Recommended Rider Height

5’0″–6’3″

Weight & Capacity

Bike Weight: 88 lb

Maximum Payload: 350 lb

Rear Rack Load Limit: 150 lb

Do not combine these values.

The 350-lb figure is the manufacturer’s total maximum payload specification, while 150 lb is the separate rating published for the rear rack/support area.

Lighting Configuration

The Ranger includes:

Front

48V LED Headlight

Rear

Integrated rear light with:

• Brake-light function
• Left turn signal
• Right turn signal

Horn

Left-Mounted 12V Dual-Tone Horn

Display Configuration

The Ranger uses a:

Full-Color Multifunction Display

Kingbull’s owner resources identify the KB20 display platform as compatible with Ranger models.

Water Resistance

Manufacturer Rating: IPX6

This indicates resistance to water exposure within the limits of the rating.

It should not be marketed as waterproof or suitable for submersion.

Charger Configuration

Charger: U.S.-Standard Smart Charger
Output Rating Listed by Kingbull: 2.0A

The correct charger should be used with the Ranger’s 48V battery system.

What’s Included – Black / Ebike Only

The exact Black / Ebike Only package includes the primary components required for the standard Ranger configuration:

• 1 × Kingbull Ranger Ebike – Black
• 750W / 1300W peak rear hub motor system
• 48V 18Ah / 864Wh removable battery
• 2.0A smart charger
• Full-color display
• Twist throttle
• Integrated headlight
• Integrated rear light / brake light / turn signals
• Dual-tone horn
• Shimano 7-speed drivetrain
• Full suspension system
• 20″ × 4″ wheels and tires
• Front and rear fenders
• Kickstand
• Aluminum-alloy pedals
• Standard assembly hardware
• Product / assembly documentation

Kingbull states that the bike arrives approximately 85% assembled, with final basic assembly required.

Not Included in This Exact Variant

Because this listing is specifically:

Black / Ebike Only

the following should not be shown as standard included equipment:

• Portable Power Station
• +$259 Power Station Upgrade
• Extra battery
• Extra charger
• Optional storage bags
• Other separately sold accessories

The manufacturer maintains a separate:

Black / +$259 Power Station Upgrade

variant.

Safety / Certification Information

Kingbull identifies the Ranger as:

UL tested/certificated by SGS

on its current product page and states that the battery system has undergone UL-related testing through SGS.

For ecommerce copy, avoid inventing a specific UL standard number unless the exact certificate/document explicitly states that standard.

Ideal Applications

The Ranger is positioned for:

• Urban transportation
• Recreational cycling
• Paved paths where permitted
• Uneven-road riding
• Casual commuting
• Moped-style ebike enthusiasts
• Riders wanting a fixed extended saddle
• Riders wanting full suspension
• Fat-tire riding

Always follow local rules regarding electric-bike class, speed, riding areas and equipment.

Product Highlights

1300W Peak Output

750W continuous motor reaches up to 1300W peak.

85 Nm Torque

Manufacturer-rated output supports the Ranger’s heavier moped-style chassis.

864Wh Battery

48V 18Ah removable battery provides substantial stored energy.

Up to 80-Mile Range

Manufacturer rating under ideal conditions.

Full Suspension

80mm front fork plus dual rear shocks.

20″ × 4″ Fat Tires

Wide tire footprint designed for varied surfaces.

Hydraulic Brakes

Motor cut-off brake levers complement the hydraulic braking system.

Vintage Moped Styling

Long brown PU leather saddle and low-profile frame create the Ranger’s distinctive retro appearance.

Integrated Signals

Headlight, brake light and turn indicators are integrated into the standard bike.

Warranty Information

Kingbull 2-Year Manufacturer Warranty, subject to the manufacturer’s applicable warranty terms, exclusions and qualifying use.
