Product Description

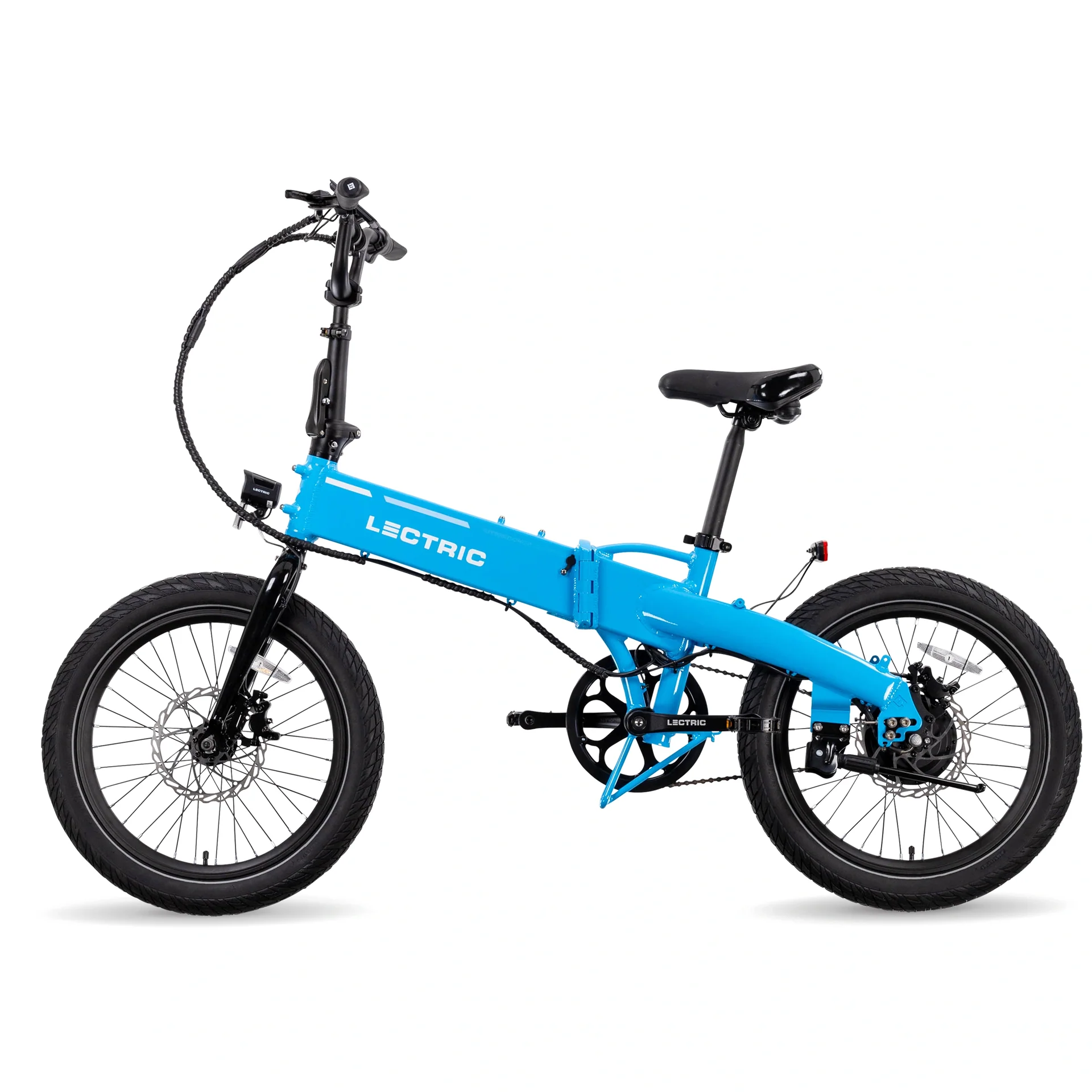

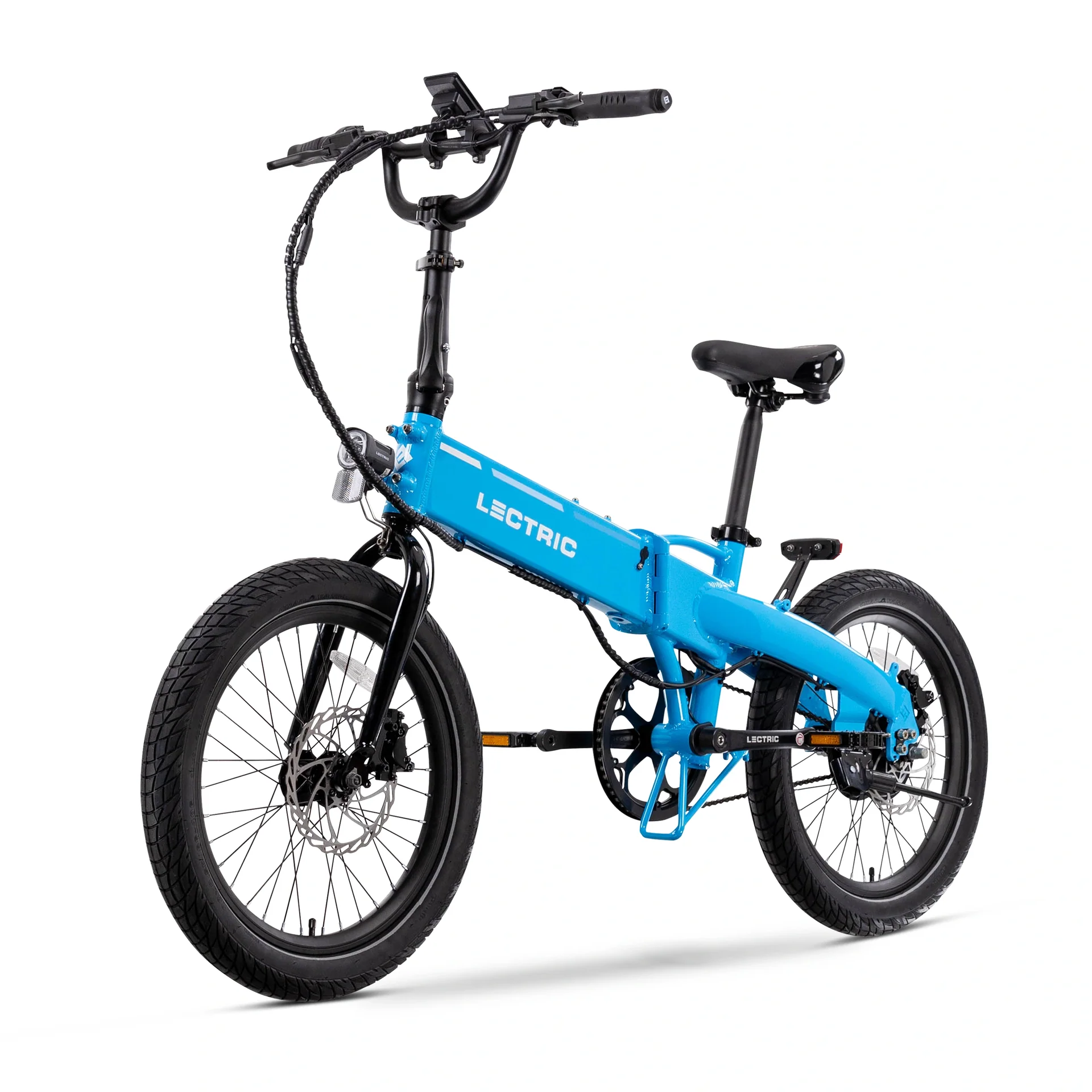

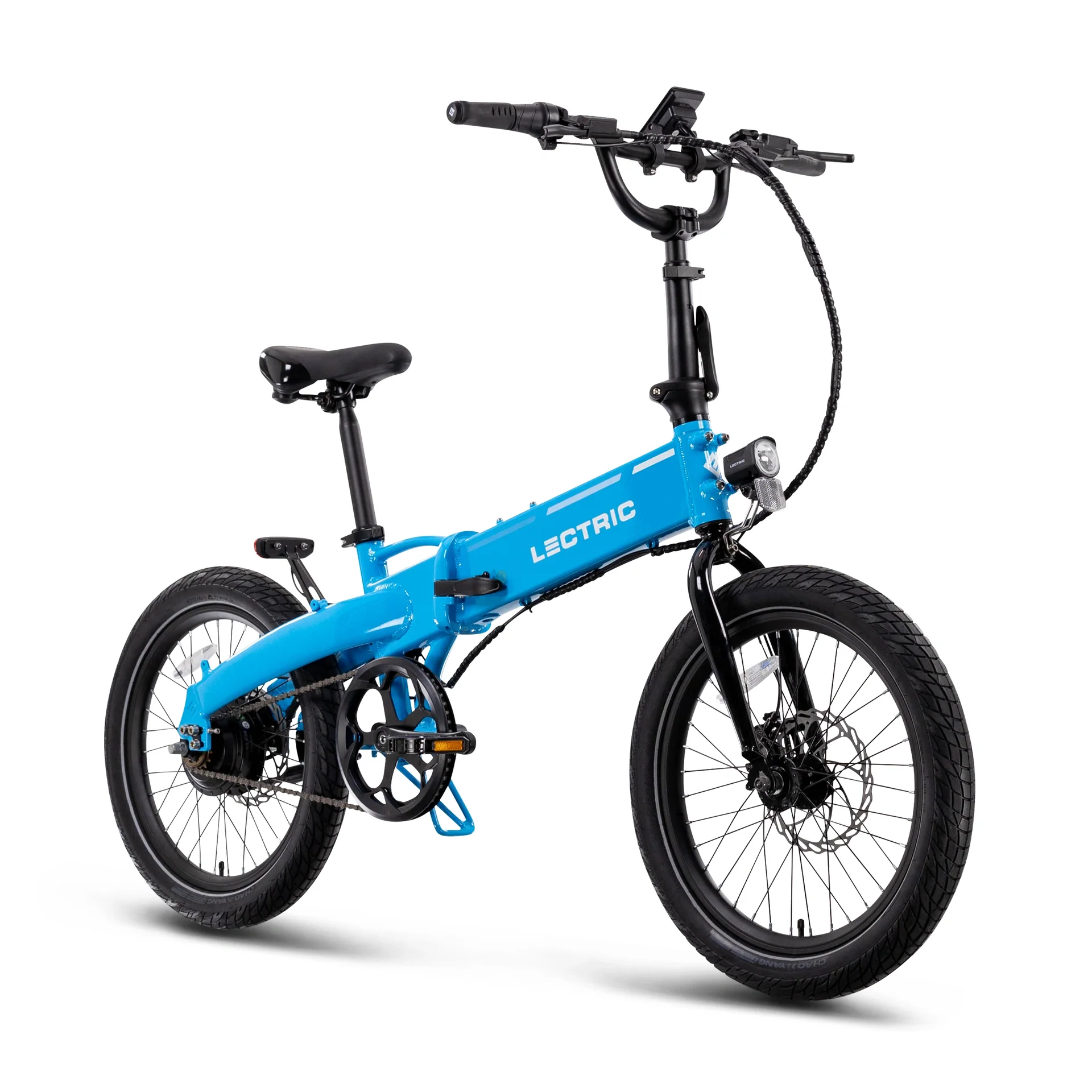

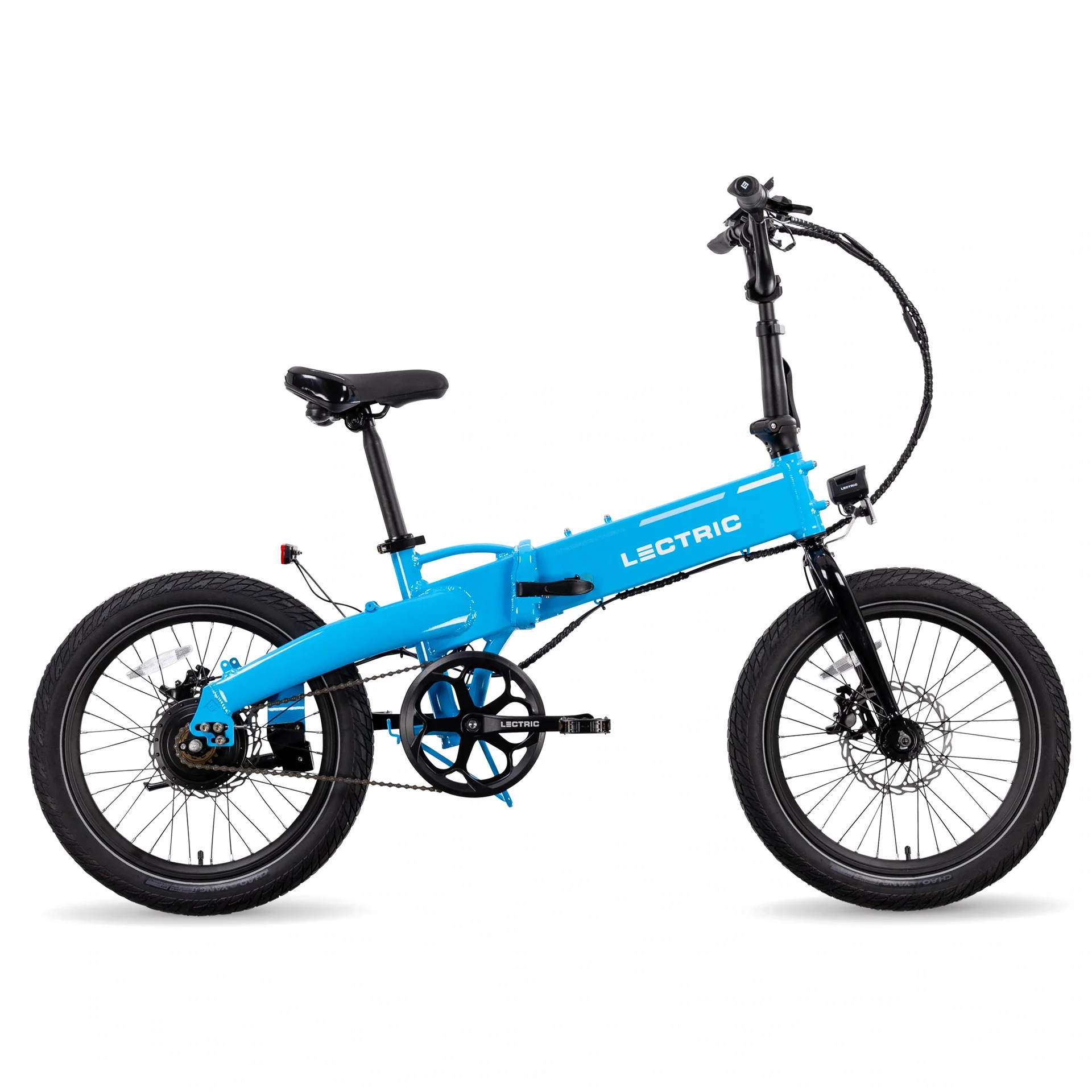

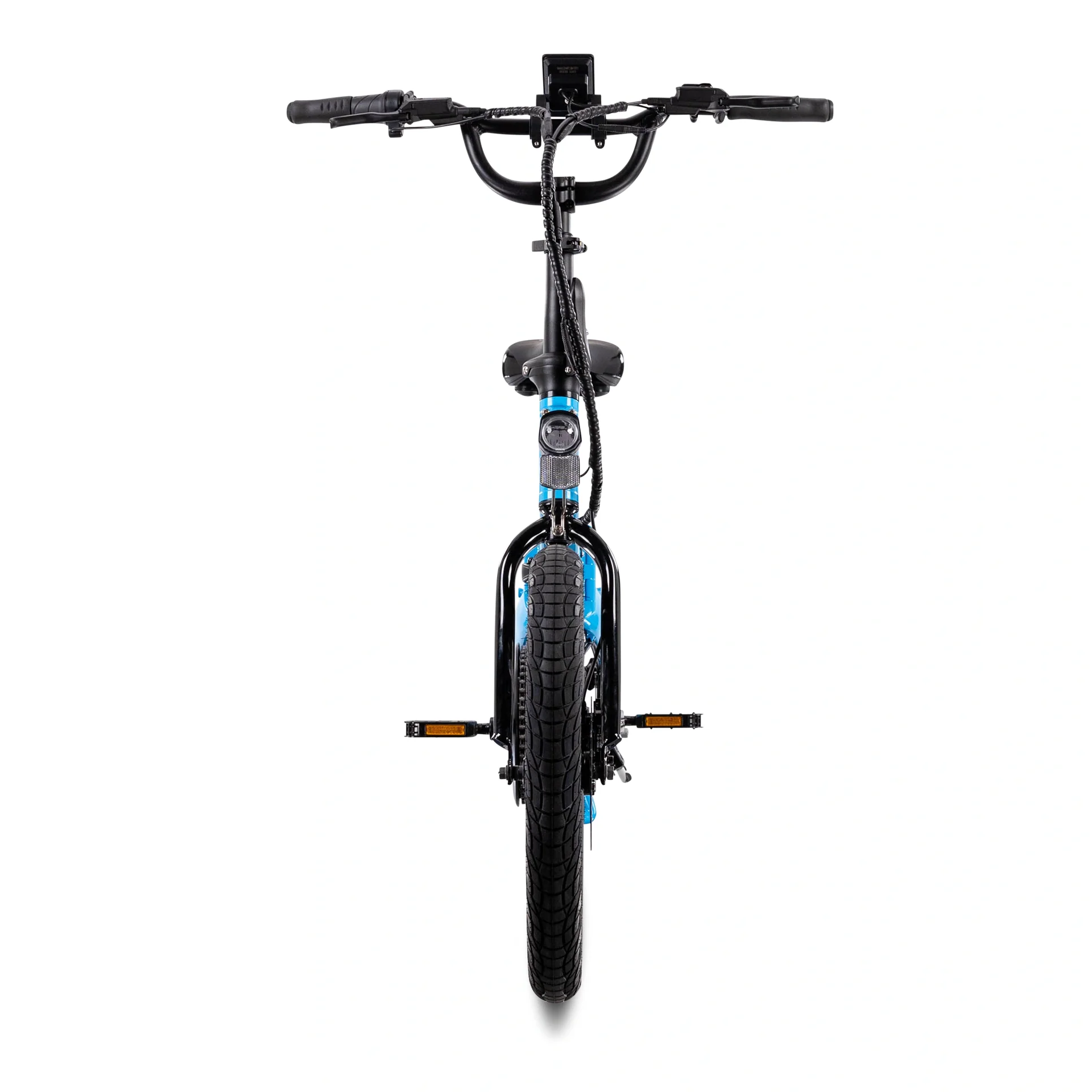

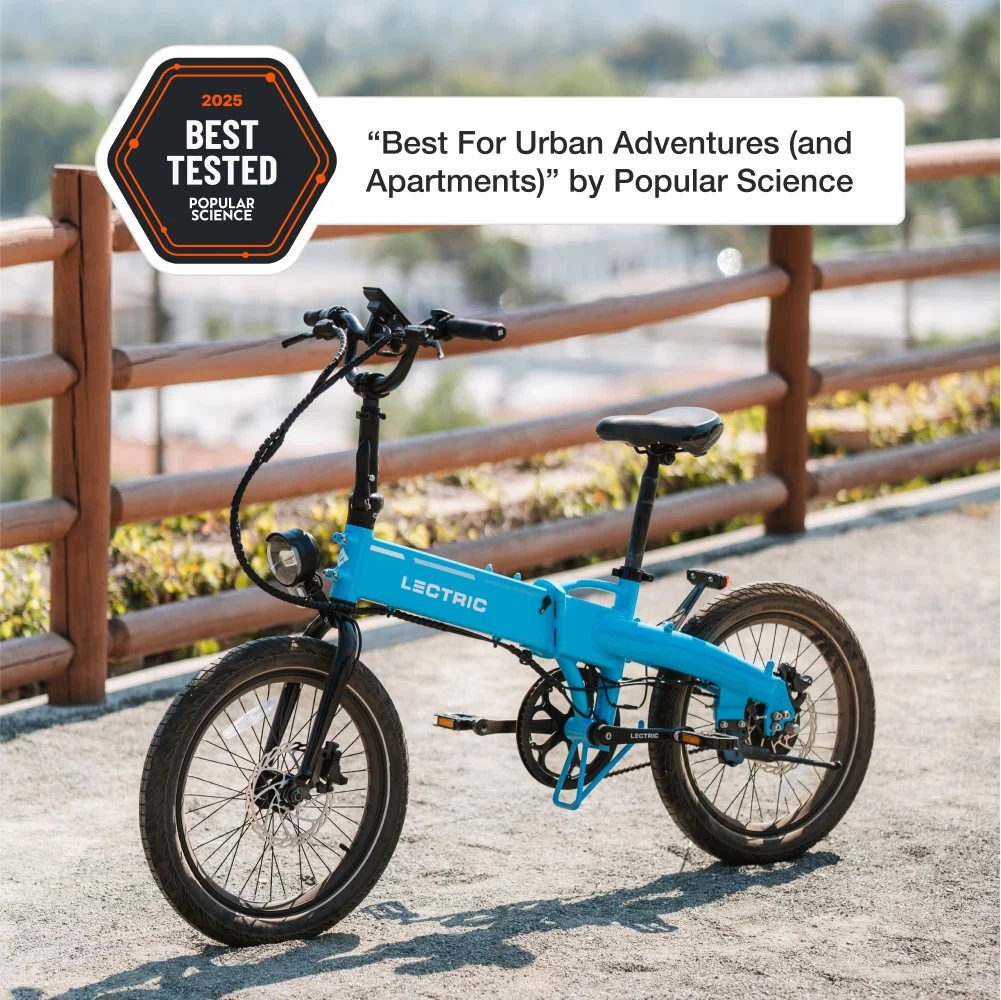

The Lectric XP Lite 2.0 is a lightweight folding electric bicycle designed for commuting, travel, compact storage and recreational riding.

This listing is specifically based on the standard-battery, chain-drive XP Lite2 configuration, rather than the separate Long-Range or Gates belt-drive versions.

Its electrical system combines a 300W rear hub motor with up to 819W peak output and 28 Nm of torque. Lectric also incorporates its Stealth M24 motor technology into the current XP Lite2 platform.

The bike’s maximum assisted speed is 20 MPH, and its five-level pedal-assist system can be configured for Class 1 or Class 2 operation where permitted. A half-twist throttle provides motor assistance independently of pedaling when enabled and legally permitted.

Lectric’s PWR – Pedal Assist Wattage Regulation programming controls assistance according to power output for each PAS setting rather than relying only on fixed speed thresholds.

The standard XP Lite2 uses a 48V 375Wh lithium-ion battery, currently shown by Lectric as approximately 7.8Ah, with a manufacturer-rated maximum range of up to 45 miles.

A separate 672Wh Long-Range battery version is available and is rated for up to 80 miles, but that specification should not be applied to the standard 375Wh product.

Stopping performance comes from front and rear hydraulic mineral-oil disc brakes with 180mm rotors.

The XP Lite2 uses 20″ × 2.5″ slick tires with reflective sidewall treatment and Lectric’s puncture-protection configuration. Slime sealant is installed from the factory.

Mechanical operation is intentionally simple. The standard chain version uses a single-speed 52 × 16 drivetrain with a KMC Z1 steel chain rather than a conventional multi-speed derailleur.

A new color LCD gives the rider battery and trip information and includes a USB-A charging port. Lectric rates the electrical components to IP65 for increased dust and water resistance.

The XP Lite2 also includes integrated front and rear lighting powered by the main battery.

Portability is one of the model’s main strengths. The current XP Lite2 weighs approximately 49 lb including battery, or approximately 41 lb with its 8-lb battery removed.

The main aluminum frame and handlebar stem fold, and the pedals also fold for more compact transportation and storage.

When unfolded, the bike measures approximately 64″ long × 25″ wide × 41.5″ high. Folded dimensions are approximately 36″ × 16″ × 27–28″, depending on the measurement reference.

Lectric recommends the XP Lite2 for riders approximately 4’8″ to 6’2″ tall. The current manufacturer support documentation lists a 220-lb rider limit and 275-lb maximum combined payload capacity.

Key Features

• Current Lectric XP Lite 2.0 generation
• Lightweight folding design
• 300W rated rear hub motor
• 819W peak motor output
• 28 Nm torque
• 20 MPH top speed
• Class 1 / Class 2 functionality
• Half-twist throttle
• Five pedal-assist levels
• Lectric PWR programming
• 48V electrical system
• 375Wh standard battery
• Up to 45-mile standard range
• Optional 672Wh Long-Range version
• Hydraulic disc brakes
• 180mm brake rotors
• 20″ × 2.5″ slick tires
• Reflective tire strip
• Factory-installed Slime tire sealant
• Single-speed chain drivetrain
• Color LCD display
• USB-A charging port
• Integrated headlight
• Integrated taillight
• Foldable aluminum frame
• Folding handlebar stem
• Folding pedals
• Adjustable seatpost
• Telescoping handlebar stem
• 49-lb approximate complete weight
• 275-lb total payload capacity
• UL 2849 bike certification
• UL 2271 battery certification

Technical Specifications

Specification	Lectric XP Lite 2.0
Brand	Lectric eBikes
Model	XP Lite2 / XP Lite 2.0
Configuration	Standard Battery / Chain
Product Type	Folding Electric Bike
Motor	Rear Hub
Rated Motor Power	300W
Peak Motor Power	819W
Motor Torque	28 Nm
Motor Technology	Stealth M24
Controller	15A
Maximum Speed	20 MPH
Pedal Assist	5 Levels
Throttle	Half-Twist
Battery Voltage	48V
Standard Battery	375Wh / 7.8Ah
Standard Range	Up to 45 Miles
Long-Range Option	672Wh / Up to 80 Miles
Brakes	Hydraulic Mineral Oil
Brake Rotors	180mm
Tires	20″ × 2.5″
Drivetrain	Single Speed
Chainring	52T
Rear Cog	16T
Chain	KMC Z1
Frame	6000-Series Aluminum
Fork	Rigid Steel
Display	Color LCD
USB Port	USB-A
Bike Weight, Battery Removed	41 lb
Battery Weight	Approx. 8 lb
Total Weight	Approx. 49 lb
Rider Weight Limit	220 lb
Total Payload	275 lb
Rider Height	4’8″–6’2″
Unfolded Dimensions	64″ × 25″ × 41.5″
Folded Dimensions	Approx. 36″ × 16″ × 27–28″
Standover Height	22″
Handlebar Height	41″–46″
Seat-to-Ground Range	32″–42″
Handlebar Width	25″
Bike Certification	UL 2849
Battery Certification	UL 2271
Warranty	1 Year

Motor Configuration

300W Rated / 819W Peak

The correct current motor specification is:

Rated Motor Power: 300W
Peak Motor Power: 819W
Torque: 28 Nm

For accurate structured data, do not describe the motor simply as an 819W continuous motor.

The 819W figure is the manufacturer’s published peak output.

Battery Configuration

Standard Battery

Voltage: 48V
Capacity: 7.8Ah
Energy: 375Wh
Published Maximum Range: Up to 45 Miles

The battery is certified to UL 2271.

Long-Range Variant

Lectric separately offers:

48V / 672Wh

with:

Up to 80 Miles of manufacturer-rated range

Do not use the 80-mile value for this standard 375Wh listing.

Range Configuration

Standard Version

Up to 45 Miles

Actual range depends on factors including:

• Rider and cargo load
• PAS level
• Throttle usage
• Terrain
• Wind
• Temperature
• Tire pressure
• Riding speed
• Battery condition

Use:

“Up to 45 miles under suitable riding conditions.”

rather than describing 45 miles as guaranteed.

Speed & Class Configuration

Maximum Speed

20 MPH

The XP Lite2 supports:

Class 1

and:

Class 2

operation, depending on throttle configuration and applicable law.

The model is not the same as Lectric’s higher-speed Class 3-capable XP models.

Pedal Assist Configuration

5 PAS Levels

Lectric uses its PWR programming to regulate power delivery across pedal-assist levels.

The bike uses a cadence sensor, not a torque sensor.

Do not describe the XP Lite2 as having a torque-sensing bottom bracket.

Throttle Configuration

Half-Twist Throttle

The current XP Lite2 includes a:

Half-Twist Throttle

Throttle operation is subject to applicable local laws.

Brake Configuration

Hydraulic Disc Brakes

Brake Type: Mineral-Oil Hydraulic
Front Rotor: 180mm
Rear Rotor: 180mm
Rotor Thickness: 1.8mm

This is one of the major improvements of XP Lite 2.0 compared with the original XP Lite generation.

Wheel & Tire Configuration

20″ × 2.5″ Slick Tires

The current standard XP Lite2 uses:

20″ × 2.5″

slick-profile tires.

Features include:

• Reflective strip
• 3mm Hippo Skin
• Aramid Floc Breaker
• Factory-installed Slime sealant

Do not describe this model as using 3″ or 4″ fat tires.

Drivetrain Configuration

Single-Speed Chain Drive

The standard chain-drive XP Lite2 uses:

Front Chainring: 52T
Rear Cog: 16T
Chain: KMC Z1 Steel

There is no conventional multi-speed cassette or rear derailleur on this exact configuration.

Belt-Drive Variant Note

A separate JW Black XP Lite2 is available with a Gates belt-drive configuration.

That version should be maintained as a separate variant.

Do not describe the standard Sandstorm, Arctic White, Lectric Blue or Lavender chain versions as Gates belt-drive bikes unless the exact SKU confirms that option.

Display Configuration

Color LCD

The current XP Lite2 includes a:

Backlit Color LCD

with:

USB-A Port

The display provides ride and battery information and access to applicable bike settings.

Electrical Protection

Lectric currently lists XP Lite2 electrical components with:

IP65

protection.

This means enhanced dust and water resistance, but the bike should not be described as waterproof or suitable for submersion.

Frame Configuration

6000-Series Aluminum

The main frame is constructed from:

6000-Series Aluminum

The front fork is:

Rigid Steel

This model does not have a suspension fork as standard.

A suspension seatpost may be offered as a promotional or optional accessory, but that is different from front suspension.

Folding Configuration

The XP Lite2 folds at:

• Main frame
• Handlebar stem
• Pedals

Unfolded

64″ L × 25″ W × 41.5″ H

Folded

Approximately:

36″ L × 16″ W × 27–28″ H

The slight 27″/28″ variation appears across current Lectric product/support references.

Size & Fit

Recommended Rider Height: 4’8″–6’2″

Standover Height: 22″

Handlebar Height: 41″–46″

Seat-to-Ground Height: 32″–42″

Handlebar Width: 25″

Handlebar Reach: Approx. 19″–20.5″

Weight & Payload

Total Bike Weight

Approx. 49 lb including battery

Bike Without Battery

Approx. 41 lb

Battery

Approx. 8 lb

Rider Limit

220 lb

Maximum Total Payload

275 lb

These values should not be confused.

The 275-lb figure represents the manufacturer’s maximum total payload specification rather than the rider-only weight limit.

Charging Configuration

The standard XP Lite2 includes a:

2A Charger

Lectric states an approximate:

2–4 Hour Charging Time

under its standard charging conditions.

An external charging port allows the battery to be charged while installed in the bicycle.

Lighting Configuration

Standard integrated safety lighting includes:

• Front headlight
• Rear taillight

Both are powered through the bike’s electrical system.

What’s Included

Lectric’s official current box-content list specifies:

• 1 × Lectric XP Lite2 Electric Bike
• Slick tires
• Standard battery
• Battery charger
• Integrated color LCD display
• Integrated front light
• Integrated tail light
• Digital owner’s manual

Lectric currently states that the bike is delivered essentially assembled, with approximately one minute of tool-free final setup.

Optional / Promotional Accessories

Do not automatically list these as permanent standard equipment unless your exact SKU or current offer includes them:

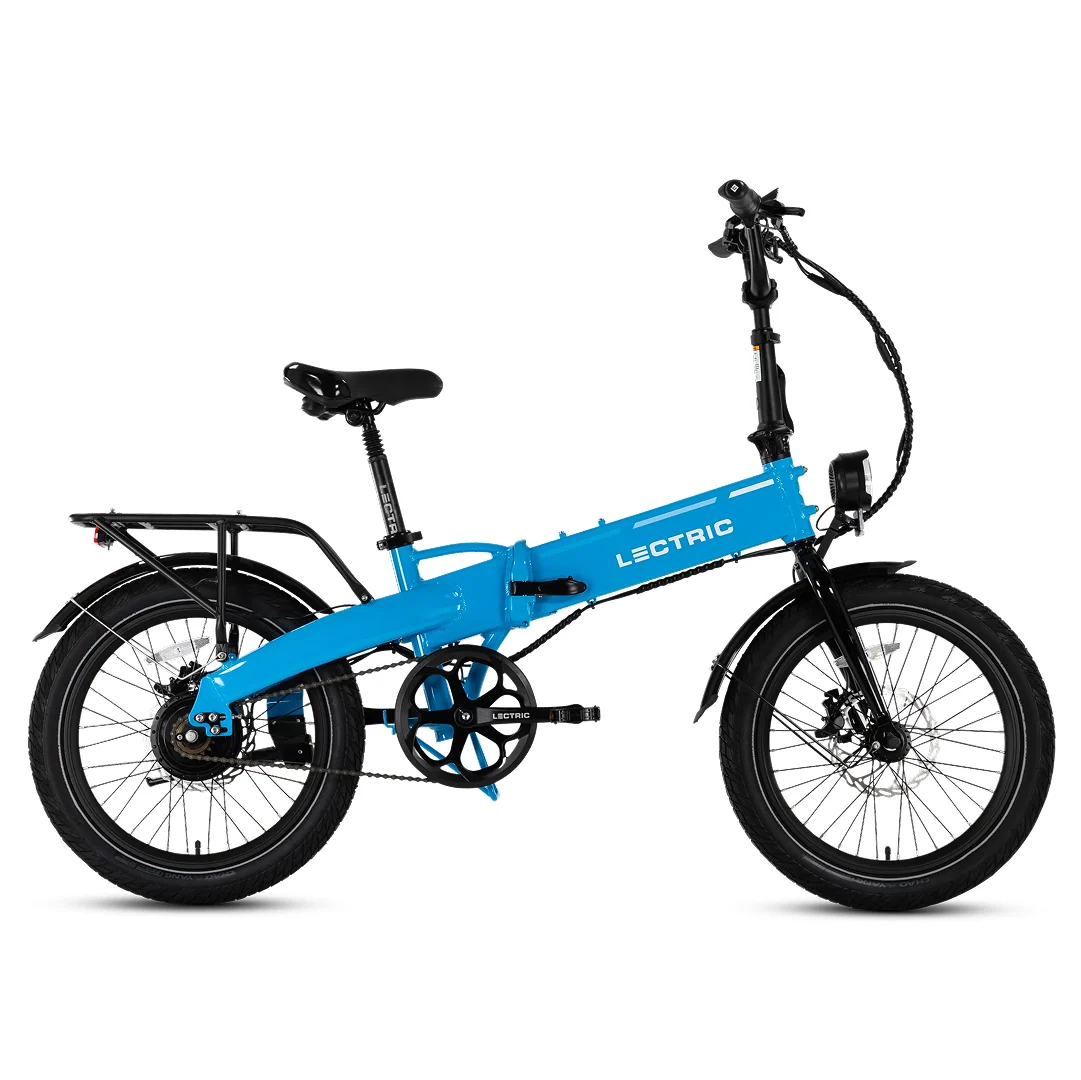

• Rear rack
• Fenders
• Elite headlight
• Suspension seatpost
• Pannier bags
• Long-Range battery
• Gates belt-drive upgrade

Lectric currently runs promotions that may include some accessories free, but promotional bundles change over time.

Safety Certification

Complete Bike

UL 2849 Certified

Battery

UL 2271 Certified

These certifications are confirmed by Lectric for the current XP Lite2 platform.

Warranty Information

Lectric currently provides a:

1-Year Manufacturer Warranty

covering most qualifying bike components.

Normal wear items such as tires, tubes and brake pads, as well as water damage, are excluded under Lectric’s published warranty terms.

Lectric eBikes 1-Year Limited Manufacturer Warranty covering qualifying components, subject to manufacturer exclusions and warranty terms.
